Inductor Datasheets
Browse and download PDF datasheets for inductors from leading manufacturers.
Series: AISC-0402HP
Browse series tables and compare the available specifications.
Product Attributes
| Product | Inductance | Current | DCR | Size | Package | Actions |
|---|---|---|---|---|---|---|
 AISC-0402HP-33NJ-T Abracon | 33 nH | 490 mA | 320mOhm Max | 0402 (1005 Metric) | Surface Mount | |
 AISC-0402HP-3N3J-T Abracon | 3.3 nH | 1.7 A | 45mOhm Max | 0402 (1005 Metric) | Surface Mount | |
 AISC-0402HP-2N7B-T Abracon | 2.7 nH | 1.5 A | 56mOhm Max | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0402 (1005 Metric) | |
 AISC-0402HP-3N9J-T Abracon | 3.9 nH | 1.7 A | 45mOhm Max | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0402 (1005 Metric) | |
 AISC-0402HP-15NJ-T Abracon | 15 nH | 1 A | 130mOhm Max | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0402 (1005 Metric) | |
 AISC-0402HP-10NJ-T Abracon | 10 nH | 1.3 A | 85mOhm Max | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0402 (1005 Metric) | |
 AISC-0402HP-5N6B-T Abracon | 5.6 nH | 1.5 A | 55mOhm Max | 0402 | Surface Mount | |
 AISC-0402HP-2N0B-T Abracon | 2 nH | 2.1 A | 38mOhm Max | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0402 (1005 Metric) | |
AISC-0402HP-33NG-T Abracon | 33 nH | 490 mA | 320mOhm Max | 0402 | Surface Mount | |
AISC-0402HP-6N8B-T Abracon | 6.8 nH | 1.4 A | 65mOhm Max | 0402 | Surface Mount | |
 AISC-0402HP-8N7J-T Abracon | 8.7 nH | 1.3 A | 85mOhm Max | 0402 (1005 Metric) | Surface Mount | |
 AISC-0402HP-11NJ-T Abracon | 11 nH | 1.3 A | 90mOhm Max | 0402 (1005 Metric) | Surface Mount | |
 AISC-0402HP-12NJ-T Abracon | 12 nH | 1.1 A | 90mOhm Max | 0402 (1005 Metric) | Surface Mount | |
 AISC-0402HP-13NJ-T Abracon | 13 nH | 1 A | 140mOhm Max | 0402 (1005 Metric) | Surface Mount | |
 AISC-0402HP-16NJ-T Abracon | 16 nH | 850 mA | 130mOhm Max | 0402 (1005 Metric) | Surface Mount | |
 AISC-0402HP-18NJ-T Abracon | 18 nH | 850 mA | 140mOhm Max | 0402 (1005 Metric) | Surface Mount | |
 AISC-0402HP-19NJ-T Abracon | 19 nH | 850 mA | 145mOhm Max | 0402 (1005 Metric) | Surface Mount | |

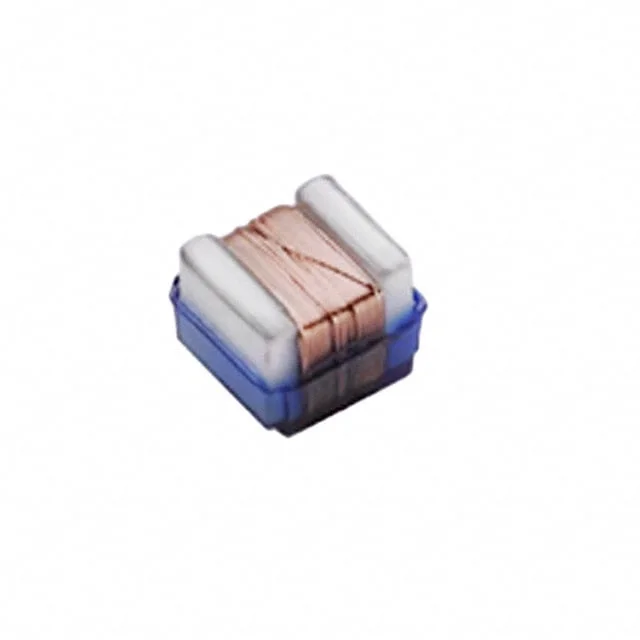

 AISC-0402HP-20NJ-T Abracon | 20 nH | 800 mA | 155mOhm Max | 0402 (1005 Metric) | Surface Mount | |
 AISC-0402HP-21NJ-T Abracon | 21 nH | 800 mA | 160mOhm Max | 0402 (1005 Metric) | Surface Mount | |
 AISC-0402HP-23NJ-T Abracon | 23 nH | 700 mA | 190mOhm Max | 0402 (1005 Metric) | Surface Mount | |
 AISC-0402HP-24NJ-T Abracon | 24 nH | 650 mA | 180mOhm Max | 0402 (1005 Metric) | Surface Mount | |
 AISC-0402HP-25NJ-T Abracon | 25 nH | 650 mA | 180mOhm Max | 0402 (1005 Metric) | Surface Mount | |
 AISC-0402HP-26NJ-T Abracon | 26 nH | 700 mA | 170mOhm Max | 0402 (1005 Metric) | Surface Mount | |
 AISC-0402HP-27NJ-T Abracon | 27 nH | 600 mA | 220mOhm Max | 0402 (1005 Metric) | Surface Mount | |
 AISC-0402HP-30NJ-T Abracon | 30 nH | 500 mA | 275mOhm Max | 0402 (1005 Metric) | Surface Mount |
