Inductor Datasheets

Browse and download PDF datasheets for inductors from leading manufacturers.

Product Attributes

All Delevan (24873)Pulse Electronics (17770)Bourns Inc. (10998)Gowanda (8081)Taiyo Yuden (8063)TDK (7746)Abracon (6926)Coilcraft (5980)

ALHP322512-R47M

3L Coils

0.47 µH• 4.2 ANonstandard

ALHP322512-1R0M

3L Coils

1 µH• 3.2 ANonstandard

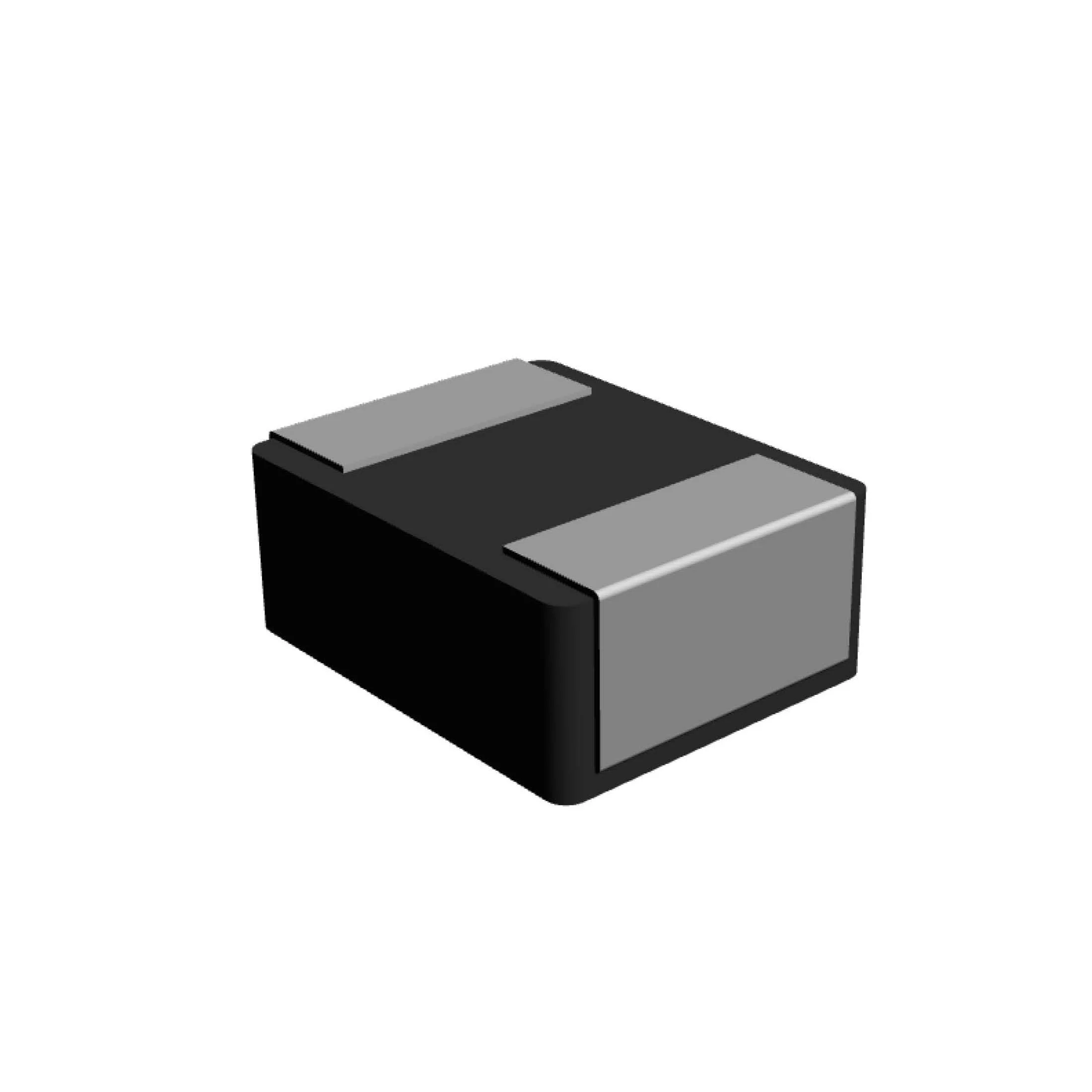

ALHP322512-4R7M

3L Coils

4.7 µH• 1.3 ANonstandard

Product	Inductance	Current	DCR	Size	Package	Actions
ALHP322512-R47M 3L Coils	0.47 µH	4.2 A	24mOhm Max	0.126" L x 0.098" W (3.20mm x 2.50mm)	Nonstandard	View PDF
ALHP322512-1R0M 3L Coils	1 µH	3.2 A	45mOhm Max	0.126" L x 0.098" W (3.20mm x 2.50mm)	Nonstandard	View PDF
ALHP322512-4R7M 3L Coils	4.7 µH	1.3 A	157mOhm Max	0.126" L x 0.098" W (3.20mm x 2.50mm)	Nonstandard	View PDF
