ASMCI-0805-R10M-T
Abracon
- Inductance
- 100 nH
- Current
- 1 A
- DCR
- 70mOhm
- Size
- 0.079" L x 0.049" W (2.00mm x 1.25mm)
Inductor Datasheets
Browse and download PDF datasheets for inductors from leading manufacturers.
Series: ASMCI-0805
Browse series tables and compare the available specifications.
ASMCI-0805
ASMCI-0805-100M-T
Abracon
- Inductance
- 10 µH
- Current
- 60 mA
- DCR
- 500mOhm
- Size
- 0.079" L x 0.049" W (2.00mm x 1.25mm)
ASMCI-0805-R47M-T
Abracon
- Inductance
- 470 nH
- Current
- 550 mA
- DCR
- 180mOhm
- Size
- 0805 (2012 Metric)
ASMCI-0805-4R7M-T
Abracon
- Inductance
- 4.7 µH
- Current
- 180 mA
- DCR
- 300mOhm
- Size
- 0.079" L x 0.049" W (2.00mm x 1.25mm)
ASMCI-0805-1R0M-T
Abracon
- Inductance
- 1 µH
- Current
- 300 mA
- DCR
- 200mOhm
- Size
- 0.079" L x 0.049" W (2.00mm x 1.25mm)
ASMCI-0805-2R2M-T
Abracon
- Inductance
- 2.2 µH
- Current
- 220 mA
- DCR
- 280mOhm
- Size
- 0805 (2012 Metric)

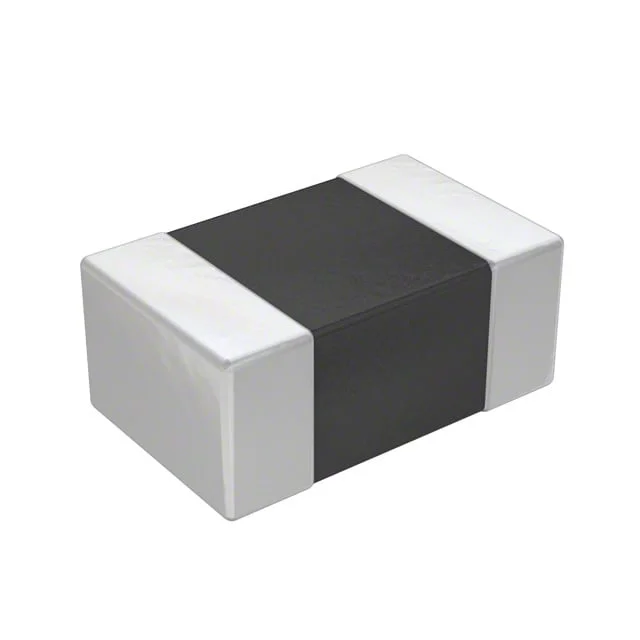

ASMCI-0805-100N-T
Abracon
- Inductance
- 10 µH
- Current
- 60 mA
- DCR
- 500mOhm
- Size
- 0.079" L x 0.049" W (2.00mm x 1.25mm)
ASMCI-0805-R22M-T
Abracon
- Inductance
- 220 nH
- Current
- 800 mA
- DCR
- 130mOhm
- Size
- 0.079" L x 0.049" W (2.00mm x 1.25mm)
| Product | Inductance | Current | DCR | Size | Package | Actions |
|---|---|---|---|---|---|---|
ASMCI-0805-R10M-T Abracon | 100 nH | 1 A | 70mOhm | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0805 (2012 Metric) | |
ASMCI-0805-100M-T Abracon | 10 µH | 60 mA | 500mOhm | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0805 (2012 Metric) | |
ASMCI-0805-R47M-T Abracon | 470 nH | 550 mA | 180mOhm | 0805 (2012 Metric) | Surface Mount | |
ASMCI-0805-4R7M-T Abracon | 4.7 µH | 180 mA | 300mOhm | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0805 (2012 Metric) | |
ASMCI-0805-1R0M-T Abracon | 1 µH | 300 mA | 200mOhm | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0805 (2012 Metric) | |
ASMCI-0805-2R2M-T Abracon | 2.2 µH | 220 mA | 280mOhm | 0805 (2012 Metric) | Surface Mount | |
ASMCI-0805-100N-T Abracon | 10 µH | 60 mA | 500mOhm | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0805 (2012 Metric) | |
ASMCI-0805-R22M-T Abracon | 220 nH | 800 mA | 130mOhm | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0805 (2012 Metric) |
