ASMPH-0805-4R7M-T
Abracon
- Inductance
- 4.7 µH
- Current
- 800 mA
- DCR
- 250mOhm
- Size
- 0.079" L x 0.049" W (2.00mm x 1.25mm)
Inductor Datasheets
Browse and download PDF datasheets for inductors from leading manufacturers.
Series: ASMPH-0805
Browse series tables and compare the available specifications.
ASMPH-0805
ASMPH-0805-1R0M-T
Abracon
- Inductance
- 1 µH
- Current
- 1.3 A
- DCR
- 110mOhm
- Size
- 0.079" L x 0.049" W (2.00mm x 1.25mm)
ASMPH-0805-3R3M-T
Abracon
- Inductance
- 3.3 µH
- Current
- 900 mA
- DCR
- 200mOhm
- Size
- 0.079" L x 0.049" W (2.00mm x 1.25mm)
ASMPH-0805-2R2M-T
Abracon
- Inductance
- 2.2 µH
- Current
- 900 mA
- DCR
- 200mOhm
- Size
- 0.079" L x 0.049" W (2.00mm x 1.25mm)
ASMPH-0805-R47M-T
Abracon
- Inductance
- 470 nH
- Current
- 1.5 A
- DCR
- 80mOhm
- Size
- 0.079" L x 0.049" W (2.00mm x 1.25mm)

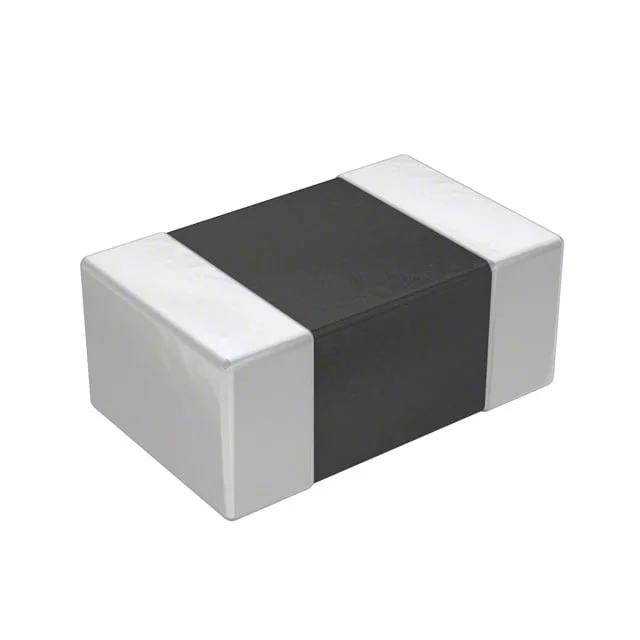

ASMPH-0805-1R5M-T
Abracon
- Inductance
- 1.5 µH
- Current
- 1.1 A
- DCR
- 160mOhm
- Size
- 0.079" L x 0.049" W (2.00mm x 1.25mm)
| Product | Inductance | Current | DCR | Size | Package | Actions |
|---|---|---|---|---|---|---|
ASMPH-0805-4R7M-T Abracon | 4.7 µH | 800 mA | 250mOhm | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0805 (2012 Metric) | |
ASMPH-0805-1R0M-T Abracon | 1 µH | 1.3 A | 110mOhm | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0805 (2012 Metric) | |
ASMPH-0805-3R3M-T Abracon | 3.3 µH | 900 mA | 200mOhm | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0805 (2012 Metric) | |
ASMPH-0805-2R2M-T Abracon | 2.2 µH | 900 mA | 200mOhm | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0805 (2012 Metric) | |
ASMPH-0805-R47M-T Abracon | 470 nH | 1.5 A | 80mOhm | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0805 (2012 Metric) | |
ASMPH-0805-1R5M-T Abracon | 1.5 µH | 1.1 A | 160mOhm | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0805 (2012 Metric) |
