Inductor Datasheets
Browse and download PDF datasheets for inductors from leading manufacturers.

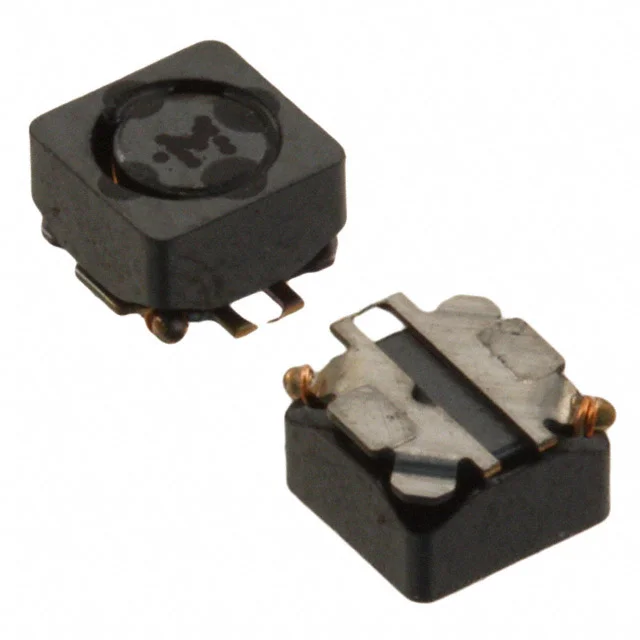

Series: ASPI-0320S
Browse series tables and compare the available specifications.
Product Attributes
| Product | Inductance | Current | DCR | Size | Package | Actions |
|---|---|---|---|---|---|---|
 ASPI-0320S-3R3N-T3 Abracon | 3.3 µH | 1.24 A | 125mOhm Max | - | Surface Mount | |
 ASPI-0320S-4R7N-T3 Abracon | 4.7 µH | 1.1 A | 157mOhm Max | - | Surface Mount | |
 ASPI-0320S-5R6N-T3 Abracon | 5.6 µH | 1 A | 180mOhm Max | - | Surface Mount | |
 ASPI-0320S-100M-T3 Abracon | 10 µH | 770 mA | 241mOhm Max | - | Surface Mount | |
 ASPI-0320S-120M-T3 Abracon | 12 µH | 680 mA | 322mOhm Max | - | Surface Mount | |
 ASPI-0320S-150M-T3 Abracon | 15 µH | 660 mA | 344mOhm Max | - | Surface Mount | |
 ASPI-0320S-220M-T3 Abracon | 22 µH | 570 mA | 495mOhm Max | - | Surface Mount | |
 ASPI-0320S-330M-T3 Abracon | 33 µH | 450 mA | 740mOhm Max | - | Surface Mount | |
 ASPI-0320S-470M-T3 Abracon | 47 µH | 360 mA | 1.157Ohm Max | - | Surface Mount |
