Series: ASPI-F1060
Browse series tables and compare the available specifications.
Product Attributes
| Product | Inductance | Current | DCR | Size | Package | Actions |
|---|---|---|---|---|---|---|

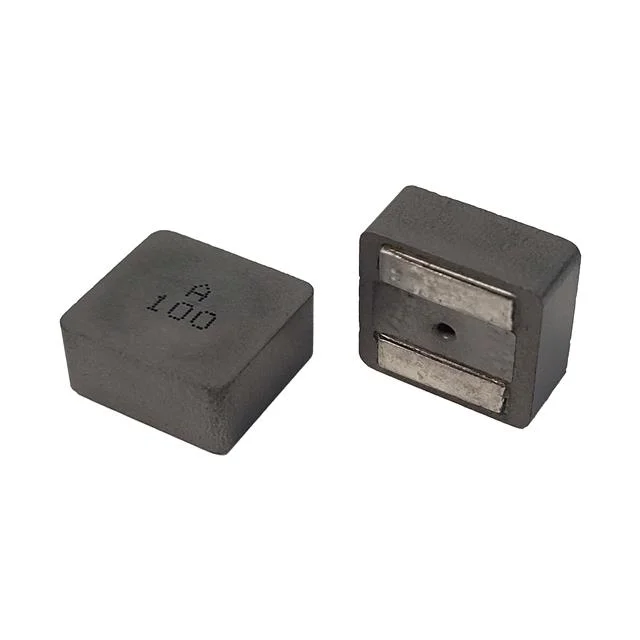

 ASPI-F1060-4R7M-T Abracon | 4.7 µH | 14 A | 10.72mOhm Max | - | Surface Mount | |
 ASPI-F1060-1R0M-T Abracon | 1 µH | 28.5 A | 2.32mOhm Max | - | Surface Mount | |
 ASPI-F1060-2R2M-T Abracon | 2.2 µH | 20 A | 4.84mOhm Max | - | Surface Mount | |
 ASPI-F1060-100M-T Abracon | 10 µH | 9 A | 18.2mOhm Max | - | Surface Mount | |
 ASPI-F1060-1R2M-T Abracon | 1.2 µH | 26.5 A | 2.64mOhm Max | 0.469" L x 0.433" W (11.90mm x 11.00mm) | Nonstandard | |
 ASPI-F1060-3R3M-T Abracon | 3.3 µH | 16.8 A | 7.7mOhm Max | 0.469" L x 0.433" W (11.90mm x 11.00mm) | Nonstandard | |
 ASPI-F1060-R68M-T Abracon | 680 nH | 34 A | 1.5mOhm Max | 0.469" L x 0.433" W (11.90mm x 11.00mm) | Nonstandard | |
 ASPI-F1060-8R2M-T Abracon | 8.2 µH | 9.5 A | 16.5mOhm Max | 0.469" L x 0.433" W (11.90mm x 11.00mm) | Nonstandard | |
 ASPI-F1060-1R5M-T Abracon | 1.5 µH | 24.5 A | 3.3mOhm Max | 0.469" L x 0.433" W (11.90mm x 11.00mm) | Nonstandard | |
 ASPI-F1060-5R6M-T Abracon | 5.6 µH | 12 A | 11.9mOhm Max | 0.469" L x 0.433" W (11.90mm x 11.00mm) | Nonstandard | |
 ASPI-F1060-6R8M-T Abracon | 6.8 µH | 10.5 A | 13mOhm Max | 0.469" L x 0.433" W (11.90mm x 11.00mm) | Nonstandard |
