ATCA-08-471M-H
Abracon
- Inductance
- 470 µH
- Current
- 7 A
- DCR
- 64mOhm Max
- Size
- 1.673" Dia (42.50mm)
Inductor Datasheets
Browse and download PDF datasheets for inductors from leading manufacturers.
Series: ATCA
Browse series tables and compare the available specifications.
ATCA
ATCA-08-251M-V
Abracon
- Inductance
- 250 µH
- Current
- 10 A
- DCR
- 27mOhm Max
- Size
- 1.673" L x 0.846" W (42.50mm x 21.50mm)

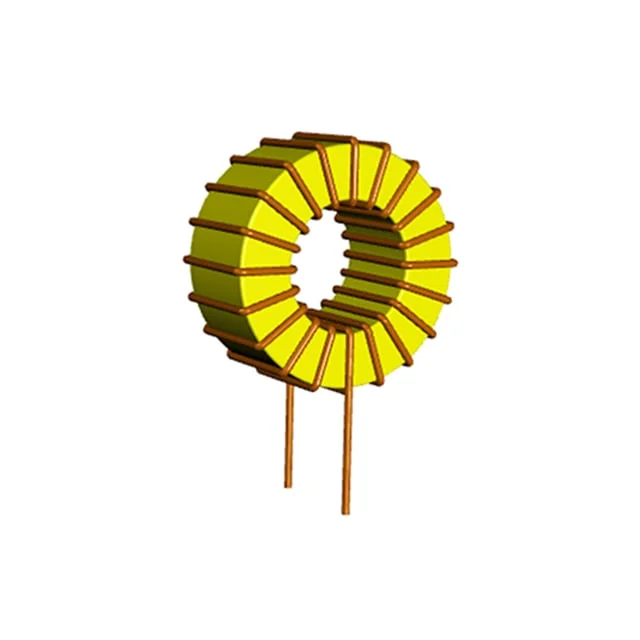

ATCA-06-301M-V
Abracon
- Inductance
- 300 µH
- Current
- 5 A
- DCR
- 64mOhm Max
- Size
- 1.260" L x 0.630" W (32.00mm x 16.00mm)

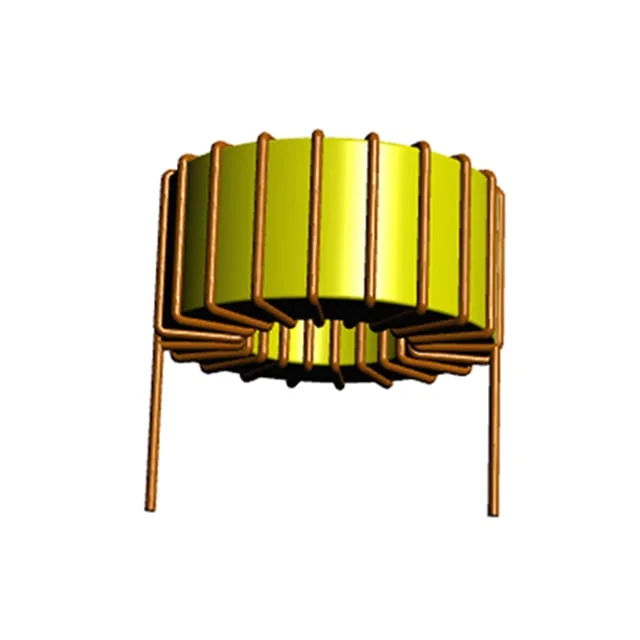

ATCA-06-301M-H
Abracon
- Inductance
- 300 µH
- Current
- 5 A
- DCR
- 64mOhm Max
- Size
- 1.260" Dia (32.00mm)

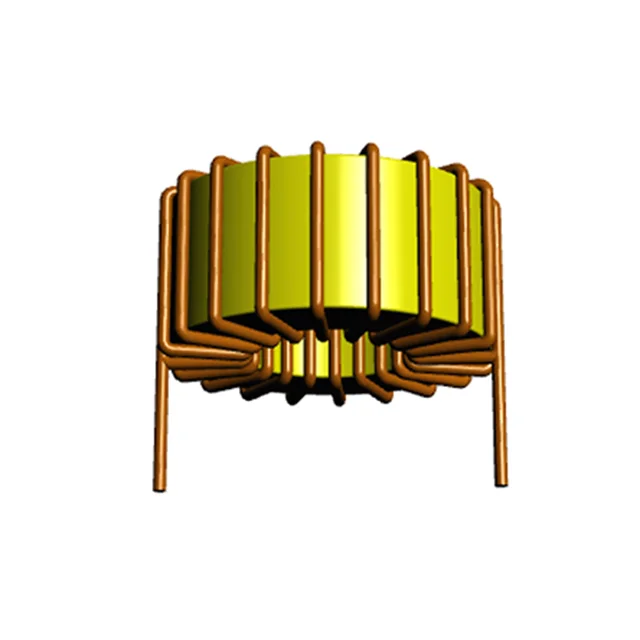

ATCA-08-251M-H
Abracon
- Inductance
- 250 µH
- Current
- 10 A
- DCR
- 27mOhm Max
- Size
- 1.673" Dia (42.50mm)
ATCA-08-471M-V
Abracon
- Inductance
- 470 µH
- Current
- 7 A
- DCR
- 64mOhm Max
- Size
- 1.673" L x 0.846" W (42.50mm x 21.50mm)

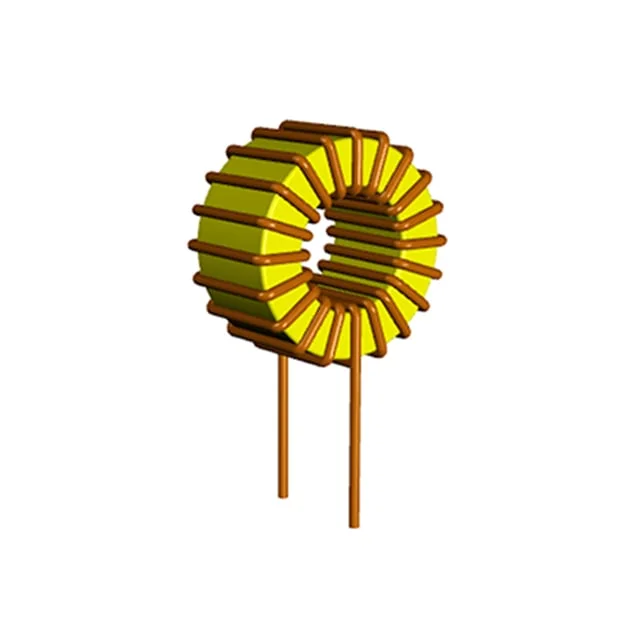

ATCA-02-290M-V
Abracon
- Inductance
- 29 µH
- Current
- 4 A
- DCR
- 20mOhm Max
- Size
- -
ATCA-01-101M-H
Abracon
- Inductance
- 100 µH
- Current
- 2 A
- DCR
- 81mOhm Max
- Size
- -
ATCA-03-111M-H
Abracon
- Inductance
- 110 µH
- Current
- 4 A
- DCR
- 42mOhm Max
- Size
- -

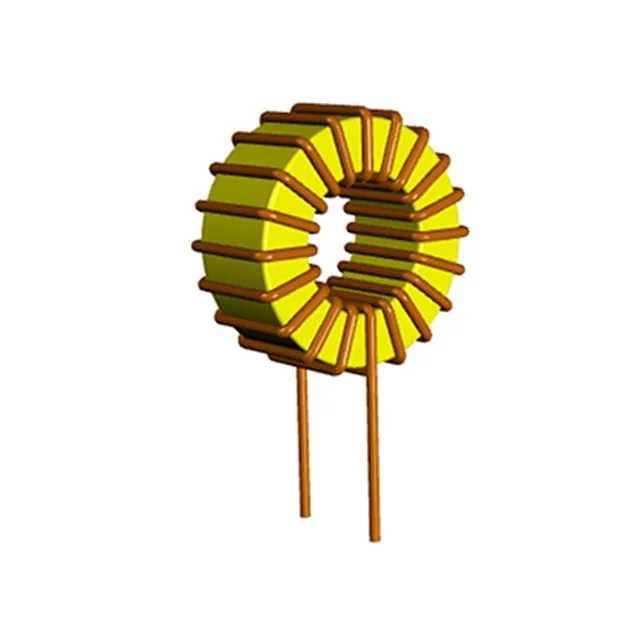

ATCA-03-650M-V
Abracon
- Inductance
- 65 µH
- Current
- 2 A
- DCR
- 55mOhm Max
- Size
- -
ATCA-03-650M-H
Abracon
- Inductance
- 65 µH
- Current
- 2 A
- DCR
- 55mOhm Max
- Size
- -
ATCA-01-300M-H
Abracon
- Inductance
- 30 µH
- Current
- 2 A
- DCR
- 35mOhm Max
- Size
- -
ATCA-07-101M-H
Abracon
- Inductance
- 100 µH
- Current
- 5 A
- DCR
- 36mOhm Max
- Size
- -

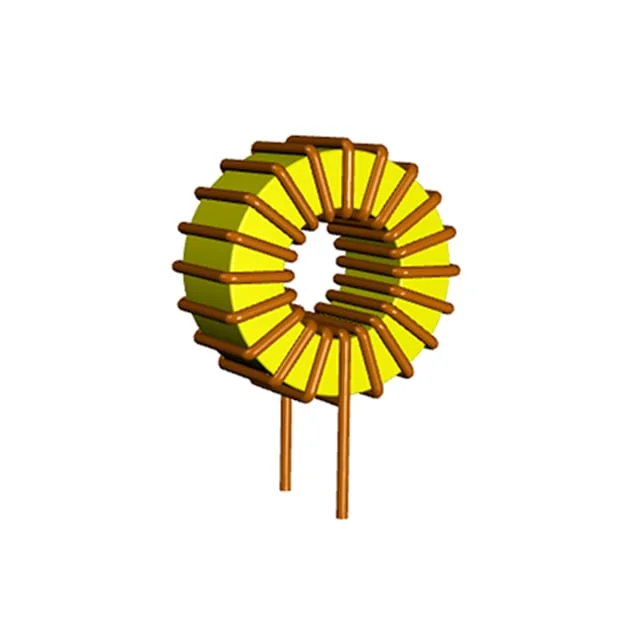

ATCA-07-101M-V
Abracon
- Inductance
- 100 µH
- Current
- 5 A
- DCR
- 36mOhm Max
- Size
- -
ATCA-01-101M-V
Abracon
- Inductance
- 100 µH
- Current
- 2 A
- DCR
- 81mOhm Max
- Size
- 0.709" L x 0.453" W (18.00mm x 11.50mm)
ATCA-03-111M-V
Abracon
- Inductance
- 110 µH
- Current
- 4 A
- DCR
- 42mOhm Max
- Size
- 0.945" L x 0.453" W (24.00mm x 11.50mm)
ATCA-04-500M-H
Abracon
- Inductance
- 50 µH
- Current
- 5 A
- DCR
- 22mOhm Max
- Size
- 1.063" Dia (27.00mm)
ATCA-04-600M-H
Abracon
- Inductance
- 60 µH
- Current
- 4 A
- DCR
- 30mOhm Max
- Size
- 1.063" Dia (27.00mm)
ATCA-04-750M-H
Abracon
- Inductance
- 75 µH
- Current
- 3 A
- DCR
- 39mOhm Max
- Size
- 1.063" Dia (27.00mm)
ATCA-04-820M-H
Abracon
- Inductance
- 82 µH
- Current
- 3 A
- DCR
- 42mOhm Max
- Size
- 1.063" Dia (27.00mm)
ATCA-04-500M-V
Abracon
- Inductance
- 50 µH
- Current
- 5 A
- DCR
- 22mOhm Max
- Size
- 1.063" L x 0.531" W (27.00mm x 13.50mm)
ATCA-04-600M-V
Abracon
- Inductance
- 60 µH
- Current
- 4 A
- DCR
- 30mOhm Max
- Size
- 1.063" L x 0.531" W (27.00mm x 13.50mm)
ATCA-04-750M-V
Abracon
- Inductance
- 75 µH
- Current
- 3 A
- DCR
- 39mOhm Max
- Size
- 1.063" L x 0.531" W (27.00mm x 13.50mm)
ATCA-04-820M-V
Abracon
- Inductance
- 82 µH
- Current
- 3 A
- DCR
- 42mOhm Max
- Size
- 1.063" L x 0.531" W (27.00mm x 13.50mm)
ATCA-04-101M-H
Abracon
- Inductance
- 100 µH
- Current
- 5 A
- DCR
- 33mOhm Max
- Size
- 1.063" Dia (27.00mm)
| Product | Inductance | Current | DCR | Size | Package | Actions |
|---|---|---|---|---|---|---|
ATCA-08-471M-H Abracon | 470 µH | 7 A | 64mOhm Max | 1.673" Dia (42.50mm) | Radial, Horizontal (Open) | |
ATCA-08-251M-V Abracon | 250 µH | 10 A | 27mOhm Max | 1.673" L x 0.846" W (42.50mm x 21.50mm) | Radial, Vertical (Open) | |
ATCA-06-301M-V Abracon | 300 µH | 5 A | 64mOhm Max | 1.260" L x 0.630" W (32.00mm x 16.00mm) | Radial, Vertical (Open) | |
ATCA-06-301M-H Abracon | 300 µH | 5 A | 64mOhm Max | 1.260" Dia (32.00mm) | Radial, Horizontal (Open) | |
ATCA-08-251M-H Abracon | 250 µH | 10 A | 27mOhm Max | 1.673" Dia (42.50mm) | Radial, Horizontal (Open) | |
ATCA-08-471M-V Abracon | 470 µH | 7 A | 64mOhm Max | 1.673" L x 0.846" W (42.50mm x 21.50mm) | Radial, Vertical (Open) | |
ATCA-02-290M-V Abracon | 29 µH | 4 A | 20mOhm Max | - | Through Hole | |
ATCA-01-101M-H Abracon | 100 µH | 2 A | 81mOhm Max | - | Through Hole | |
ATCA-03-111M-H Abracon | 110 µH | 4 A | 42mOhm Max | - | Through Hole | |
ATCA-03-650M-V Abracon | 65 µH | 2 A | 55mOhm Max | - | Through Hole | |
ATCA-03-650M-H Abracon | 65 µH | 2 A | 55mOhm Max | - | Through Hole | |
ATCA-01-300M-H Abracon | 30 µH | 2 A | 35mOhm Max | - | Through Hole | |
ATCA-07-101M-H Abracon | 100 µH | 5 A | 36mOhm Max | - | Through Hole | |
ATCA-07-101M-V Abracon | 100 µH | 5 A | 36mOhm Max | - | Through Hole | |
ATCA-01-101M-V Abracon | 100 µH | 2 A | 81mOhm Max | 0.709" L x 0.453" W (18.00mm x 11.50mm) | Radial, Vertical (Open) | |
ATCA-03-111M-V Abracon | 110 µH | 4 A | 42mOhm Max | 0.945" L x 0.453" W (24.00mm x 11.50mm) | Radial, Vertical (Open) | |
ATCA-04-500M-H Abracon | 50 µH | 5 A | 22mOhm Max | 1.063" Dia (27.00mm) | Radial, Horizontal (Open) | |
ATCA-04-600M-H Abracon | 60 µH | 4 A | 30mOhm Max | 1.063" Dia (27.00mm) | Radial, Horizontal (Open) | |
ATCA-04-750M-H Abracon | 75 µH | 3 A | 39mOhm Max | 1.063" Dia (27.00mm) | Radial, Horizontal (Open) | |
ATCA-04-820M-H Abracon | 82 µH | 3 A | 42mOhm Max | 1.063" Dia (27.00mm) | Radial, Horizontal (Open) | |
ATCA-04-500M-V Abracon | 50 µH | 5 A | 22mOhm Max | 1.063" L x 0.531" W (27.00mm x 13.50mm) | Radial, Vertical (Open) | |
ATCA-04-600M-V Abracon | 60 µH | 4 A | 30mOhm Max | 1.063" L x 0.531" W (27.00mm x 13.50mm) | Radial, Vertical (Open) | |
ATCA-04-750M-V Abracon | 75 µH | 3 A | 39mOhm Max | 1.063" L x 0.531" W (27.00mm x 13.50mm) | Radial, Vertical (Open) | |
ATCA-04-820M-V Abracon | 82 µH | 3 A | 42mOhm Max | 1.063" L x 0.531" W (27.00mm x 13.50mm) | Radial, Vertical (Open) | |
ATCA-04-101M-H Abracon | 100 µH | 5 A | 33mOhm Max | 1.063" Dia (27.00mm) | Radial, Horizontal (Open) |
