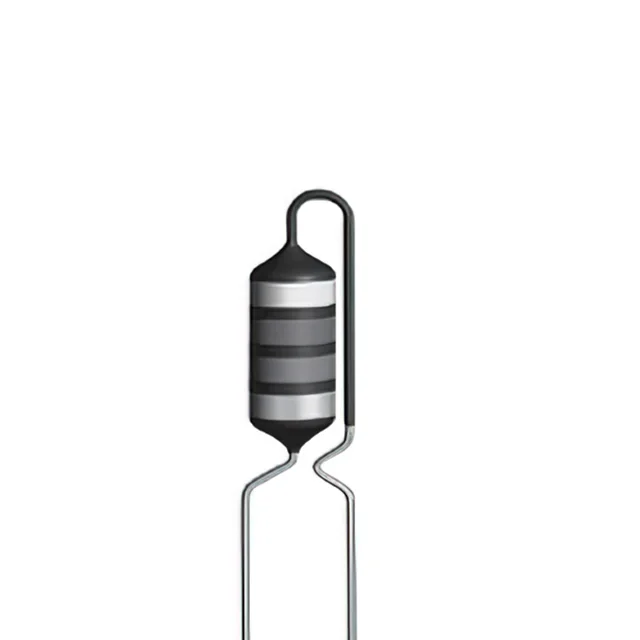

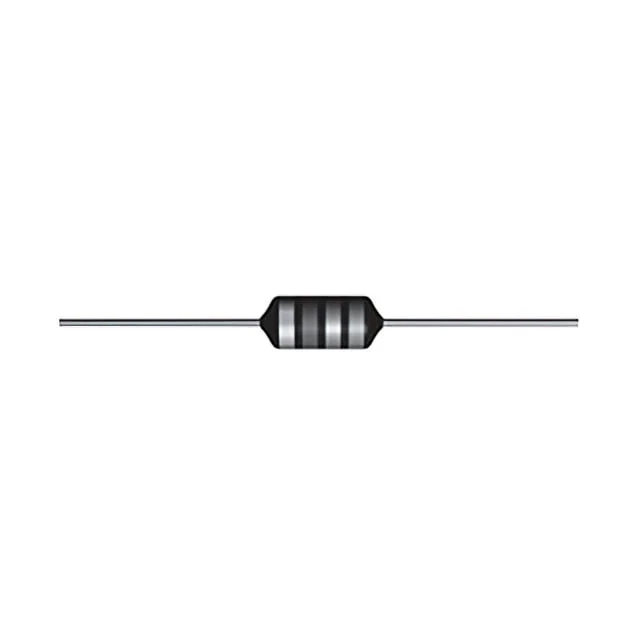

Series: B78148S1
Browse series tables and compare the available specifications.
Product Attributes
| Product | Inductance | Current | DCR | Size | Package | Actions |
|---|---|---|---|---|---|---|
| 68 µH | 1 A | 1.35Ohm Max | 0.157" Dia x 0.362" L (4.00mm x 9.20mm) | Axial | ||
| 1.8 mH | 95 mA | 26Ohm Max | 0.157" Dia x 0.362" L (4.00mm x 9.20mm) | Axial | ||
| 1.2 mH | 115 mA | 17.5Ohm Max | 0.157" Dia x 0.362" L (4.00mm x 9.20mm) | Axial | ||
| 1.5 µH | 1 A | 200mOhm Max | 0.157" Dia x 0.362" L (4.00mm x 9.20mm) | Axial | ||
| 120 µH | 500 mA | 2.4Ohm Max | 0.157" Dia x 0.362" L (4.00mm x 9.20mm) | Axial | ||
| 3.9 nH | 59 mA | 66mOhm Max | 0.157" Dia x 0.362" L (4.00mm x 9.20mm) | Axial | ||
| 27 µH | 530 mA | 830mOhm Max | 0.157" Dia x 0.362" L (4.00mm x 9.20mm) | Axial | ||
| 1.8 µH | 1.03 A | 220mOhm Max | 0.157" Dia x 0.362" L (4.00mm x 9.20mm) | Axial | ||
| 15 µH | 610 mA | 600mOhm Max | 0.157" Dia x 0.362" L (4.00mm x 9.20mm) | Axial | ||
| 2.7 µH | 500 mA | 260mOhm Max | 0.157" Dia x 0.362" L (4.00mm x 9.20mm) | Axial | ||
| 2.2 µH | 1 A | 250mOhm Max | 0.157" Dia x 0.362" L (4.00mm x 9.20mm) | Axial | ||
| 8.2 µH | 690 mA | 480mOhm Max | 0.157" Dia x 0.362" L (4.00mm x 9.20mm) | Axial | ||
| 33 µH | 500 mA | 920mOhm Max | 0.157" Dia x 0.362" L (4.00mm x 9.20mm) | Axial | ||
| 5.6 µH | 780 mA | 380mOhm Max | 0.157" Dia x 0.362" L (4.00mm x 9.20mm) | Axial | ||
| 3.3 µH | 500 mA | 290mOhm Max | 0.157" Dia x 0.362" L (4.00mm x 9.20mm) | Axial |
