B82498B1472J000
TDK
- Inductance
- 4.7 µH
- Current
- 90 mA
- DCR
- 3.8Ohm Max
- Size
- 0.087" L x 0.055" W (2.20mm x 1.40mm)
Inductor Datasheets
Browse and download PDF datasheets for inductors from leading manufacturers.
Series: B82498B
Browse series tables and compare the available specifications.
B82498B
B82498B1182J000
TDK
- Inductance
- 1.8 µH
- Current
- 190 mA
- DCR
- 850mOhm Max
- Size
- 0.087" L x 0.055" W (2.20mm x 1.40mm)
B82498B1272J000
TDK
- Inductance
- 2.7 µH
- Current
- 120 mA
- DCR
- 2Ohm Max
- Size
- 0.087" L x 0.055" W (2.20mm x 1.40mm)
B82498B1222J000
TDK
- Inductance
- 2.2 µH
- Current
- 130 mA
- DCR
- 1.7Ohm
- Size
- 0.087" L x 0.055" W (2.20mm x 1.40mm)
B82498B3561J000
TDK
- Inductance
- 560 nH
- Current
- 100 mA
- DCR
- 3.2Ohm Max
- Size
- 0.087" L x 0.055" W (2.20mm x 1.40mm)
B82498B1122J000
TDK
- Inductance
- 1.2 µH
- Current
- 220 mA
- DCR
- 650mOhm Max
- Size
- 0.087" L x 0.055" W (2.20mm x 1.40mm)

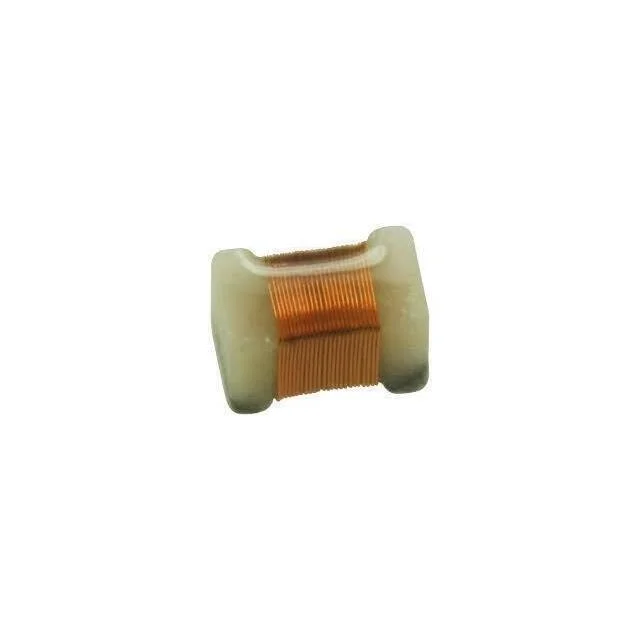

B82498B3101J000
TDK
- Inductance
- 100 nH
- Current
- 350 mA
- DCR
- 260mOhm Max
- Size
- 0.087" L x 0.055" W (2.20mm x 1.40mm)
B82498B3470J000
TDK
- Inductance
- 47 nH
- Current
- 500 mA
- DCR
- 130mOhm Max
- Size
- 0.087" L x 0.055" W (2.20mm x 1.40mm)
B82498B3220J000
TDK
- Inductance
- 22 nH
- Current
- 600 mA
- DCR
- 90mOhm Max
- Size
- 0.087" L x 0.055" W (2.20mm x 1.40mm)
B82498B3121J000
TDK
- Inductance
- 120 nH
- Current
- 270 mA
- DCR
- 440mOhm Max
- Size
- 0.087" L x 0.055" W (2.20mm x 1.40mm)
B82498B3820J000
TDK
- Inductance
- 82 nH
- Current
- 390 mA
- DCR
- 210mOhm Max
- Size
- 0.087" L x 0.055" W (2.20mm x 1.40mm)
B82498B3181J000
TDK
- Inductance
- 180 nH
- Current
- 260 mA
- DCR
- 470mOhm Max
- Size
- 0.087" L x 0.055" W (2.20mm x 1.40mm)
B82498B1152J000
TDK
- Inductance
- 1.5 µH
- Current
- 200 mA
- DCR
- 750mOhm Max
- Size
- 0.087" L x 0.055" W (2.20mm x 1.40mm)
B82498B3390J000
TDK
- Inductance
- 39 nH
- Current
- 560 mA
- DCR
- 100mOhm Max
- Size
- 0.087" L x 0.055" W (2.20mm x 1.40mm)
B82498B3391J000
TDK
- Inductance
- 390 nH
- Current
- 130 mA
- DCR
- 1.9Ohm Max
- Size
- 0.087" L x 0.055" W (2.20mm x 1.40mm)
B82498B1332J000
TDK
- Inductance
- 3.3 µH
- Current
- 100 mA
- DCR
- 3.3Ohm Max
- Size
- 0.087" L x 0.055" W (2.20mm x 1.40mm)
| Product | Inductance | Current | DCR | Size | Package | Actions |
|---|---|---|---|---|---|---|
| 4.7 µH | 90 mA | 3.8Ohm Max | 0.087" L x 0.055" W (2.20mm x 1.40mm) | 0805 (2012 Metric) | ||
| 1.8 µH | 190 mA | 850mOhm Max | 0.087" L x 0.055" W (2.20mm x 1.40mm) | 0805 (2012 Metric) | ||
| 2.7 µH | 120 mA | 2Ohm Max | 0.087" L x 0.055" W (2.20mm x 1.40mm) | 0805 (2012 Metric) | ||
| 2.2 µH | 130 mA | 1.7Ohm | 0.087" L x 0.055" W (2.20mm x 1.40mm) | 0805 (2012 Metric) | ||
| 560 nH | 100 mA | 3.2Ohm Max | 0.087" L x 0.055" W (2.20mm x 1.40mm) | 0805 (2012 Metric) | ||
| 1.2 µH | 220 mA | 650mOhm Max | 0.087" L x 0.055" W (2.20mm x 1.40mm) | 0805 (2012 Metric) | ||
| 100 nH | 350 mA | 260mOhm Max | 0.087" L x 0.055" W (2.20mm x 1.40mm) | 0805 (2012 Metric) | ||
| 47 nH | 500 mA | 130mOhm Max | 0.087" L x 0.055" W (2.20mm x 1.40mm) | 0805 (2012 Metric) | ||
| 22 nH | 600 mA | 90mOhm Max | 0.087" L x 0.055" W (2.20mm x 1.40mm) | 0805 (2012 Metric) | ||
| 120 nH | 270 mA | 440mOhm Max | 0.087" L x 0.055" W (2.20mm x 1.40mm) | 0805 (2012 Metric) | ||
| 82 nH | 390 mA | 210mOhm Max | 0.087" L x 0.055" W (2.20mm x 1.40mm) | 0805 (2012 Metric) | ||
| 180 nH | 260 mA | 470mOhm Max | 0.087" L x 0.055" W (2.20mm x 1.40mm) | 0805 (2012 Metric) | ||
| 1.5 µH | 200 mA | 750mOhm Max | 0.087" L x 0.055" W (2.20mm x 1.40mm) | 0805 (2012 Metric) | ||
| 39 nH | 560 mA | 100mOhm Max | 0.087" L x 0.055" W (2.20mm x 1.40mm) | 0805 (2012 Metric) | ||
| 390 nH | 130 mA | 1.9Ohm Max | 0.087" L x 0.055" W (2.20mm x 1.40mm) | 0805 (2012 Metric) | ||
| 3.3 µH | 100 mA | 3.3Ohm Max | 0.087" L x 0.055" W (2.20mm x 1.40mm) | 0805 (2012 Metric) |
