Series: CSBA0650
Browse series tables and compare the available specifications.
Product Attributes
| Product | Inductance | Current | DCR | Size | Package | Actions |
|---|---|---|---|---|---|---|

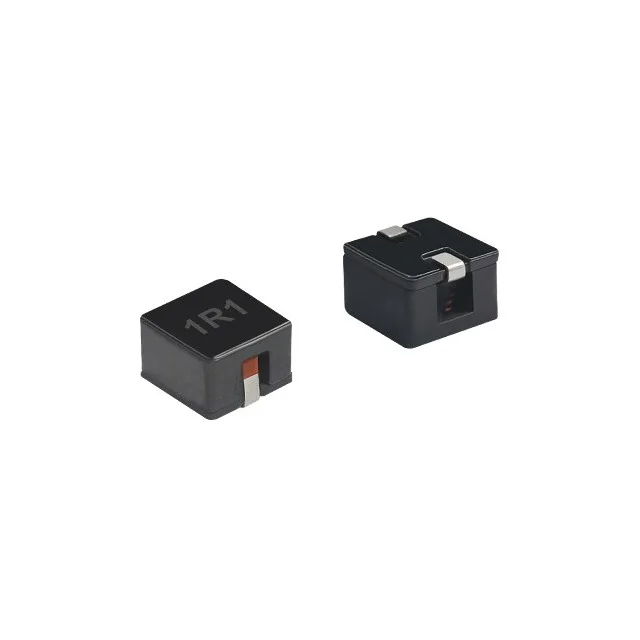

 CSBA0650-R24M CODACA | 0.24 µH | 21 A | 1Ohm Max | 0.276 L x 0.272 W (7.00mm x 6.90mm) | 2-SMD | |
 CSBA0650-3R3M CODACA | 3.3 µH | 9 A | 9.8Ohm Max | 0.276 L x 0.272 W (7.00mm x 6.90mm) | 2-SMD | |
 CSBA0650-6R5M CODACA | 6.5 µH | 6 A | 23.6Ohm Max | 0.276 L x 0.272 W (7.00mm x 6.90mm) | 2-SMD | |
 CSBA0650-2R0M CODACA | 2 µH | 11.8 A | 6.4Ohm Max | 0.276 L x 0.272 W (7.00mm x 6.90mm) | 2-SMD | |
 CSBA0650-1R1M CODACA | 1.1 µH | 15 A | 4.1Ohm Max | 0.276 L x 0.272 W (7.00mm x 6.90mm) | 2-SMD | |
 CSBA0650-4R7M CODACA | 4.7 µH | 6.5 A | 17Ohm Max | 0.276 L x 0.272 W (7.00mm x 6.90mm) | 2-SMD | |
 CSBA0650-100M CODACA | 10 µH | 4.4 A | 30.5Ohm Max | 0.276 L x 0.272 W (7.00mm x 6.90mm) | 2-SMD |
