Inductor Datasheets
Browse and download PDF datasheets for inductors from leading manufacturers.
Series: CSBL0650
Browse series tables and compare the available specifications.
Product Attributes
| Product | Inductance | Current | DCR | Size | Package | Actions |
|---|---|---|---|---|---|---|
 CSBL0650-2R0M CODACA | 2 µH | 11.8 A | 6.4mOhm Max | 0.276 L x 0.272 W (7.00mm x 6.90mm) | 2-SMD | |
 CSBL0650-6R8M CODACA | 6.8 µH | 6 A | 23.6mOhm Max | 0.276 L x 0.272 W (7.00mm x 6.90mm) | 2-SMD | |
 CSBL0650-R25M CODACA | 250 nH | 21 A | 1mOhm Max | 0.276 L x 0.272 W (7.00mm x 6.90mm) | 2-SMD | |

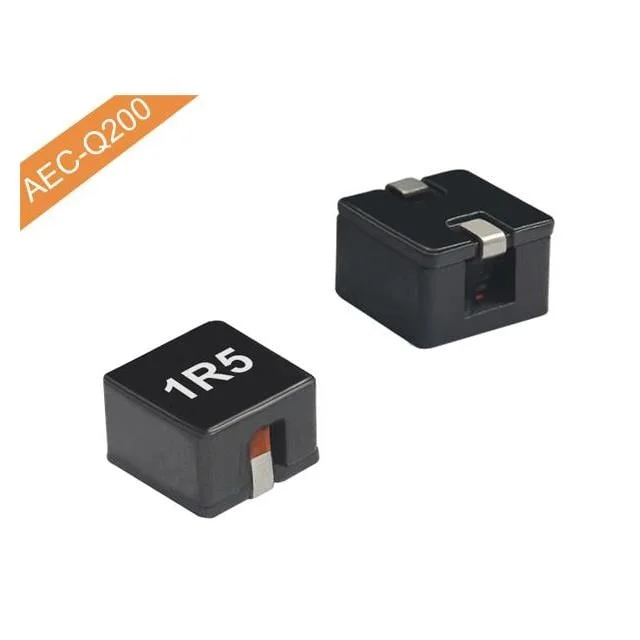

 CSBL0650-1R0M CODACA | 1 µH | 15 A | 4.1mOhm Max | 0.276 L x 0.272 W (7.00mm x 6.90mm) | 2-SMD | |
 CSBL0650-3R3M CODACA | 3.3 µH | 9 A | 9.8mOhm Max | 0.276 L x 0.272 W (7.00mm x 6.90mm) | 2-SMD | |
 CSBL0650-100M CODACA | 10 µH | 4.4 A | 30.5mOhm Max | 0.276 L x 0.272 W (7.00mm x 6.90mm) | 2-SMD | |
 CSBL0650-4R7M CODACA | 4.7 µH | 6.5 A | 17mOhm Max | 0.276 L x 0.272 W (7.00mm x 6.90mm) | 2-SMD |
