CSBX1235-R25M
CODACA
- Inductance
- 0.25 µH
- Current
- 24 A
- DCR
- 900mOhm Max
- Size
- 0.543 L x 0.504 W (13.80mm x 12.80mm)
Inductor Datasheets
Browse and download PDF datasheets for inductors from leading manufacturers.
Series: CSBX1235
Browse series tables and compare the available specifications.
CSBX1235

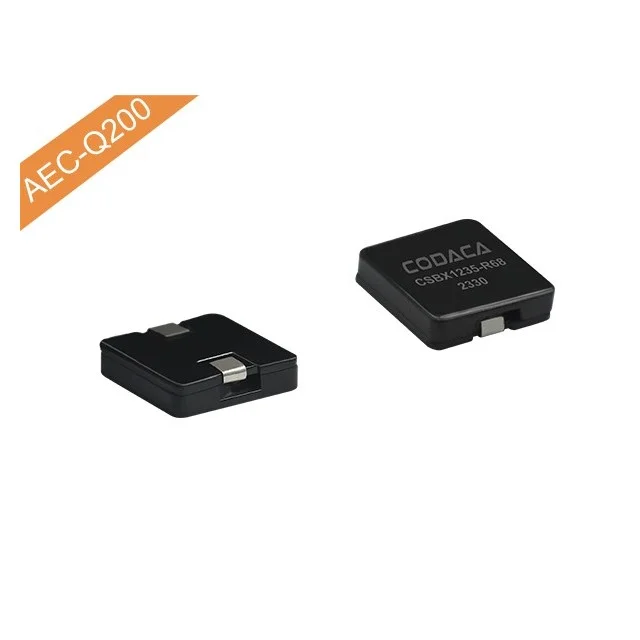

CSBX1235-3R3M
CODACA
- Inductance
- 3.3 µH
- Current
- 12 A
- DCR
- 9.45Ohm Max
- Size
- 0.543 L x 0.504 W (13.80mm x 12.80mm)

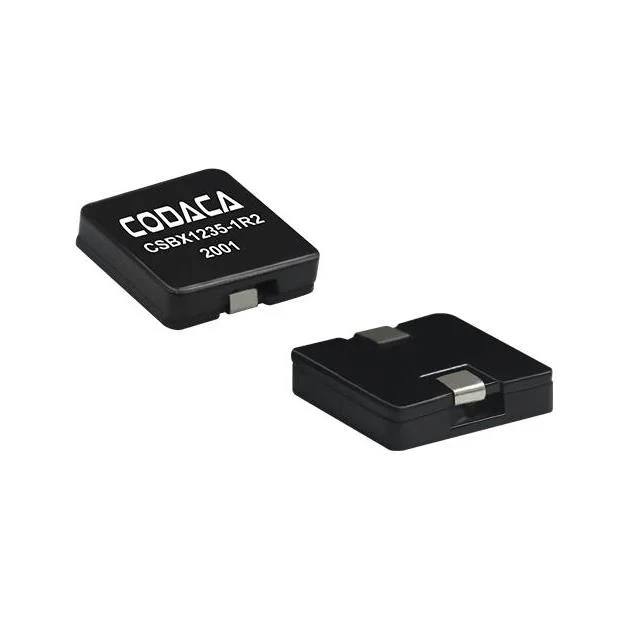

CSBX1235-4R7M
CODACA
- Inductance
- 4.7 µH
- Current
- 9 A
- DCR
- 13.5mOhm Max
- Size
- 0.543 L x 0.504 W (13.80mm x 12.80mm)
| Product | Inductance | Current | DCR | Size | Package | Actions |
|---|---|---|---|---|---|---|
CSBX1235-R25M CODACA | 0.25 µH | 24 A | 900mOhm Max | 0.543 L x 0.504 W (13.80mm x 12.80mm) | 2-SMD | |
CSBX1235-3R3M CODACA | 3.3 µH | 12 A | 9.45Ohm Max | 0.543 L x 0.504 W (13.80mm x 12.80mm) | 2-SMD | |
CSBX1235-4R7M CODACA | 4.7 µH | 9 A | 13.5mOhm Max | 0.543 L x 0.504 W (13.80mm x 12.80mm) | 2-SMD |
