Series: CTDS3316F
Browse series tables and compare the available specifications.
Product Attributes
| Product | Inductance | Current | DCR | Size | Package | Actions |
|---|---|---|---|---|---|---|
 CTDS3316PF-153 Central Technologies | 15 µH | 1.5 A | 150mOhm Max | 0.510 L x 0.370 W (12.95mm x 9.40mm) | Nonstandard | |
 CTDS3316PF-224 Central Technologies | 220 µH | 370 mA | 2Ohm Max | 0.510 L x 0.370 W (12.95mm x 9.40mm) | Nonstandard | |
 CTDS3316PF-223 Central Technologies | 22 µH | 1.3 A | 207mOhm Max | 0.510 L x 0.370 W (12.95mm x 9.40mm) | Nonstandard | |

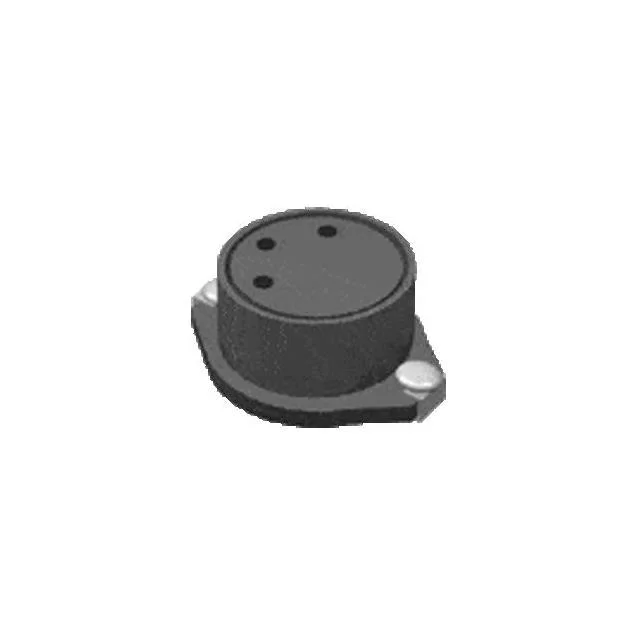

 CTDS3316PF-473 Central Technologies | 47 µH | 800 mA | 472mOhm Max | 0.510 L x 0.370 W (12.95mm x 9.40mm) | Nonstandard | |
 CTDS3316PF-103 Central Technologies | 10 µH | 2 A | 101mOhm Max | 0.510 L x 0.370 W (12.95mm x 9.40mm) | Nonstandard | |
 CTDS3316PF-682 Central Technologies | 6.8 µH | 2.2 A | 75mOhm Max | 0.510 L x 0.370 W (12.95mm x 9.40mm) | Nonstandard | |
 CTDS3316PF-102 Central Technologies | 1 µH | 5 A | 21mOhm Max | 0.510 L x 0.370 W (12.95mm x 9.40mm) | Nonstandard | |
 CTDS3316PF-683 Central Technologies | 68 µH | 700 mA | 660mOhm Max | 0.510 L x 0.370 W (12.95mm x 9.40mm) | Nonstandard |
