Series: CTDS5022F
Browse series tables and compare the available specifications.
Product Attributes
| Product | Inductance | Current | DCR | Size | Package | Actions |
|---|---|---|---|---|---|---|
 CTDS5022PF-223 Central Technologies | 22 µH | 3.1 A | 60mOhm Max | 0.730 L x 0.600 W (18.54mm x 15.24mm) | Nonstandard | |
 CTDS5022PF-105 Central Technologies | 1 mH | 530 mA | 2Ohm Max | 0.730 L x 0.600 W (18.54mm x 15.24mm) | Nonstandard | |
 CTDS5022PF-333 Central Technologies | 33 µH | 2.8 A | 80mOhm Max | 0.730 L x 0.600 W (18.54mm x 15.24mm) | Nonstandard | |
 CTDS5022PF-224 Central Technologies | 220 µH | 1.1 A | 470mOhm Max | 0.730 L x 0.600 W (18.54mm x 15.24mm) | Nonstandard | |
 CTDS5022PF-154 Central Technologies | 150 µH | 1.3 A | 300mOhm Max | 0.730 L x 0.600 W (18.54mm x 15.24mm) | Nonstandard | |
 CTDS5022PF-103 Central Technologies | 10 µH | 3.9 A | 40mOhm Max | 0.730 L x 0.600 W (18.54mm x 15.24mm) | Nonstandard | |
 CTDS5022PF-153 Central Technologies | 15 µH | 3.4 A | 50mOhm Max | 0.730 L x 0.600 W (18.54mm x 15.24mm) | Nonstandard | |

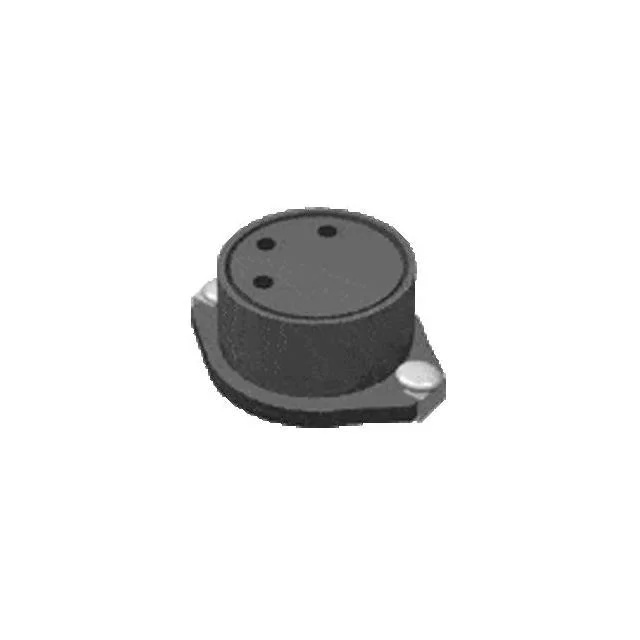

 CTDS5022PF-683 Central Technologies | 68 µH | 2 A | 140mOhm Max | 0.730 L x 0.600 W (18.54mm x 15.24mm) | Nonstandard | |
 CTDS5022PF-473 Central Technologies | 47 µH | 2.4 A | 100mOhm Max | 0.730 L x 0.600 W (18.54mm x 15.24mm) | Nonstandard | |
 CTDS5022PF-104 Central Technologies | 100 µH | 1.7 A | 210mOhm Max | 0.730 L x 0.600 W (18.54mm x 15.24mm) | Nonstandard | |
 CTDS5022PF-334 Central Technologies | 330 µH | 860 mA | 780mOhm Max | 0.730 L x 0.600 W (18.54mm x 15.24mm) | Nonstandard |
