Series: CTMC2220F
Browse series tables and compare the available specifications.
Product Attributes
| Product | Inductance | Current | DCR | Size | Package | Actions |
|---|---|---|---|---|---|---|

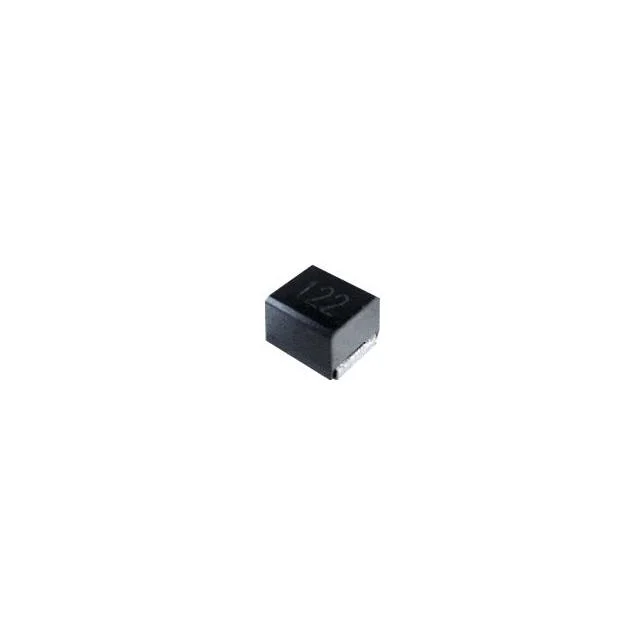

 CTMC2220F-103J Central Technologies | 10 mH | 25 mA | 150Ohm Max | 0.232" L x 0.205" W (5.90mm x 5.20mm) | Nonstandard | |
 CTMC2220F-332J Central Technologies | 3.3 mH | 40 mA | 60Ohm Max | 0.232 L x 0.205 W (5.90mm x 5.20mm) | Nonstandard | |
 CTMC2220F-822J Central Technologies | 8.2 mH | 28 mA | 125Ohm Max | 0.232 L x 0.205 W (5.90mm x 5.20mm) | Nonstandard | |
 CTMC2220F-122J Central Technologies | 1.2 mH | 75 mA | 17Ohm Max | 0.232 L x 0.205 W (5.90mm x 5.20mm) | Nonstandard | |
 CTMC2220F-182J Central Technologies | 1.8 mH | 60 mA | 30Ohm Max | 0.232 L x 0.205 W (5.90mm x 5.20mm) | Nonstandard | |
 CTMC2220F-682J Central Technologies | 6.8 mH | 30 mA | 110Ohm Max | 0.232 L x 0.205 W (5.90mm x 5.20mm) | Nonstandard |
