Series: CTPCI7045F
Browse series tables and compare the available specifications.
Product Attributes
| Product | Inductance | Current | DCR | Size | Package | Actions |
|---|---|---|---|---|---|---|
 CTPCI7045F-4R7N Central Technologies | 4.7 µH | 4.1 A | 23.4mOhm Max | 0.291 L x 0.276 W (7.40mm x 7.00mm) | Nonstandard | |
 CTPCI7045F-6R8N Central Technologies | 6.8 µH | 3.9 A | 26.4mOhm Max | 0.291 L x 0.276 W (7.40mm x 7.00mm) | Nonstandard | |
 CTPCI7045F-100M Central Technologies | 10 µH | 3.1 A | 39.6mOhm Max | 0.291 L x 0.276 W (7.40mm x 7.00mm) | Nonstandard | |
 CTPCI7045F-471M Central Technologies | 470 µH | 460 mA | 1.44Ohm Max | 0.291 L x 0.276 W (7.40mm x 7.00mm) | Nonstandard | |
 CTPCI7045F-221M Central Technologies | 220 µH | 750 mA | 660mOhm Max | 0.291 L x 0.276 W (7.40mm x 7.00mm) | Nonstandard | |
 CTPCI7045F-1R0N Central Technologies | 1 µH | 6.5 A | 11.7mOhm Max | 0.291 L x 0.276 W (7.40mm x 7.00mm) | Nonstandard | |
 CTPCI7045F-470M Central Technologies | 47 µH | 1.7 A | 156mOhm Max | 0.291 L x 0.276 W (7.40mm x 7.00mm) | Nonstandard | |
 CTPCI7045F-220M Central Technologies | 22 µH | 2.2 A | 82.8mOhm Max | 0.291 L x 0.276 W (7.40mm x 7.00mm) | Nonstandard | |

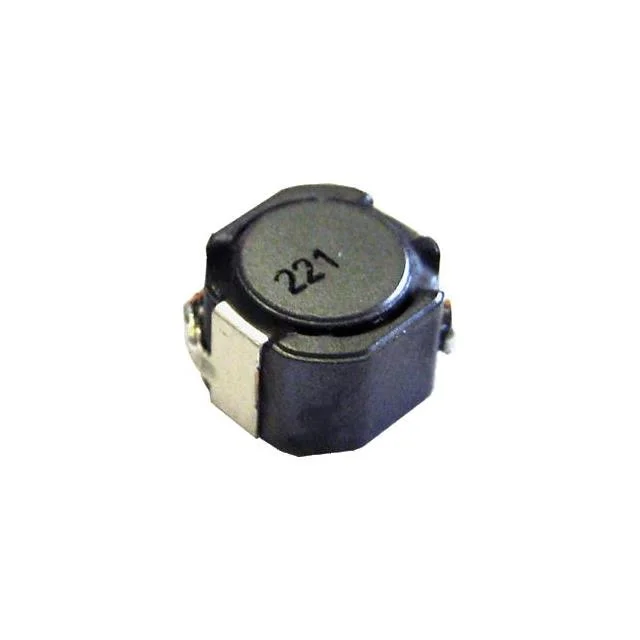

 CTPCI7045F-3R3N Central Technologies | 3.3 µH | 4.8 A | 20.8mOhm Max | 0.291 L x 0.276 W (7.40mm x 7.00mm) | Nonstandard | |
 CTPCI7045F-101M Central Technologies | 100 µH | 1.05 A | 312mOhm Max | 0.291 L x 0.276 W (7.40mm x 7.00mm) | Nonstandard |
