Inductor Datasheets

Browse and download PDF datasheets for inductors from leading manufacturers.

Product Attributes

All Delevan (24873)Pulse Electronics (17770)Bourns Inc. (10998)Gowanda (8081)Taiyo Yuden (8063)TDK (7746)Abracon (6926)Coilcraft (5980)

3L Coils

0.47 µH• 3 ANonstandard

3L Coils

2.2 µH• 1.5 ANonstandard

3L Coils

10 µH• 0.7 ANonstandard

Product	Inductance	Current	DCR	Size	Package	Actions
HPI0310-R47M 3L Coils	0.47 µH	3 A	24mOhm Max	0.134" L x 0.118" W (3.40mm x 3.00mm)	Nonstandard	View PDF

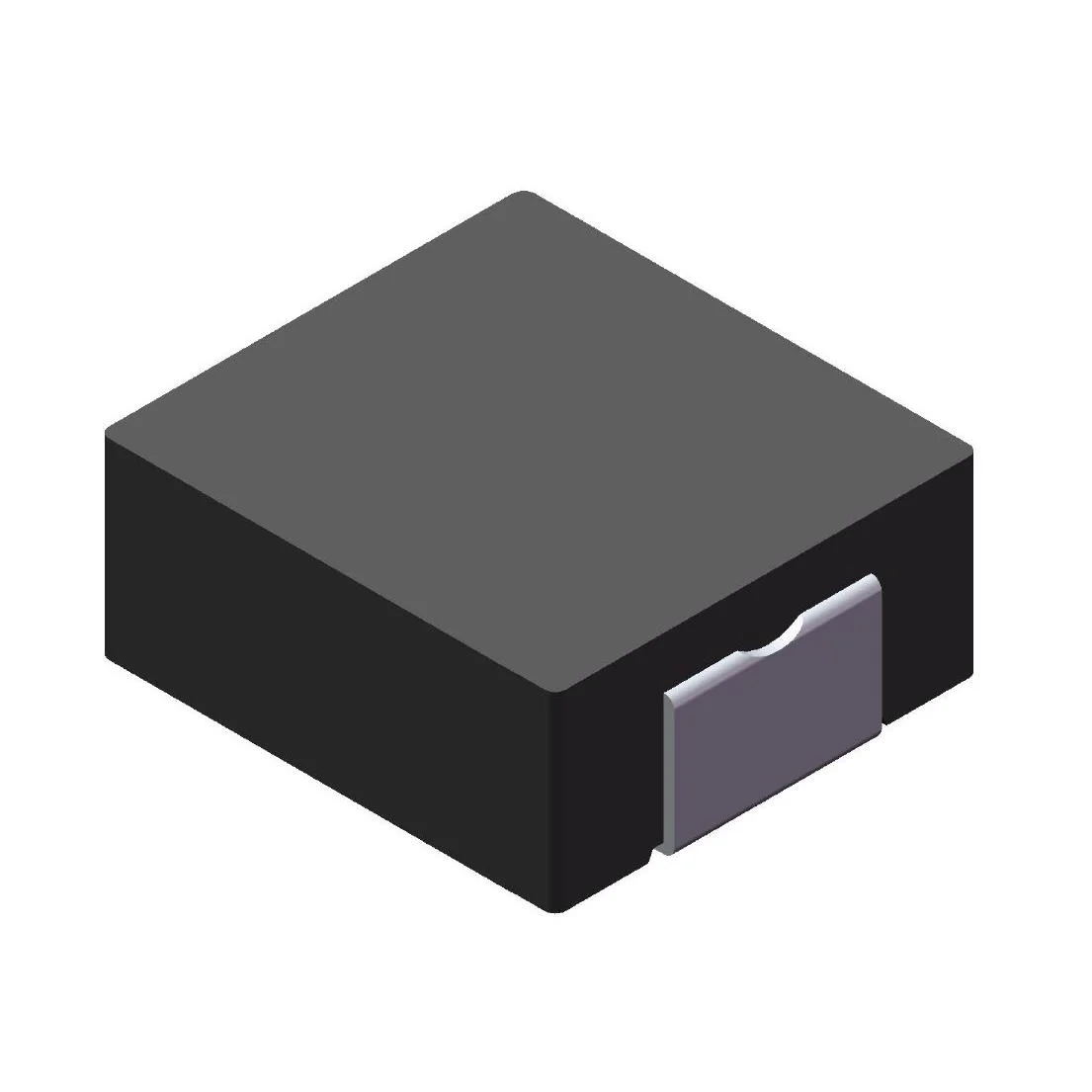

HPI0310-2R2M 3L Coils	2.2 µH	1.5 A	124mOhm Max	0.134" L x 0.118" W (3.40mm x 3.00mm)	Nonstandard	View PDF
HPI0310-100M 3L Coils	10 µH	0.7 A	430mOhm Max	0.134" L x 0.118" W (3.40mm x 3.00mm)	Nonstandard	View PDF
