HPI0312-R22M
3L Coils
- Inductance
- 0.22 µH
- Current
- 7.5 A
- DCR
- 12mOhm Max
- Size
- 0.134" L x 0.118" W (3.40mm x 3.00mm)
Inductor Datasheets
Browse and download PDF datasheets for inductors from leading manufacturers.
Series: HPI0312
Browse series tables and compare the available specifications.
HPI0312
HPI0312-2R2M
3L Coils
- Inductance
- 2.2 µH
- Current
- 2.1 A
- DCR
- 105mOhm Max
- Size
- 0.134" L x 0.118" W (3.40mm x 3.00mm)

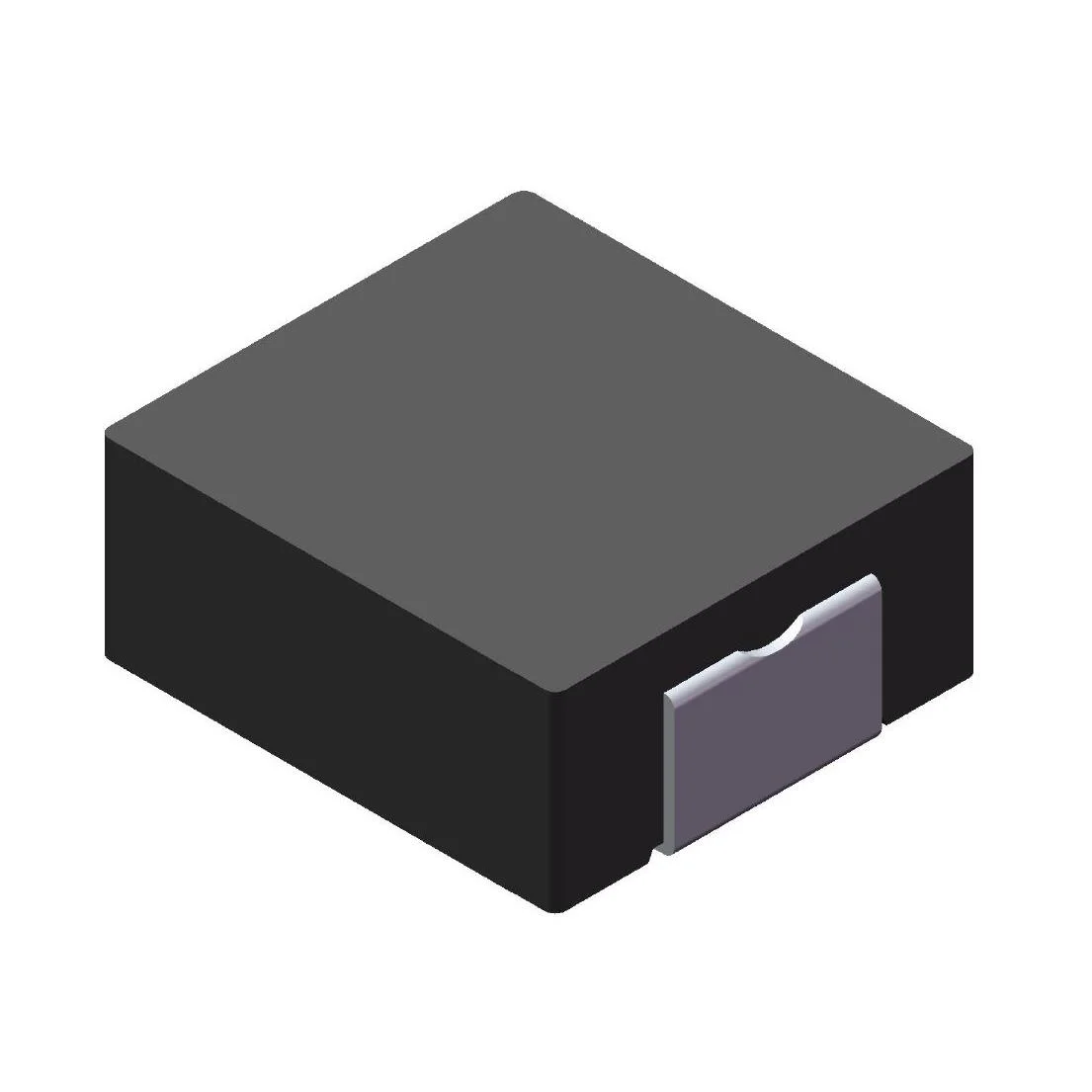

HPI0312-4R7M
3L Coils
- Inductance
- 4.7 µH
- Current
- 0.9 A
- DCR
- 190mOhm Max
- Size
- 0.134" L x 0.118" W (3.40mm x 3.00mm)
| Product | Inductance | Current | DCR | Size | Package | Actions |
|---|---|---|---|---|---|---|
HPI0312-R22M 3L Coils | 0.22 µH | 7.5 A | 12mOhm Max | 0.134" L x 0.118" W (3.40mm x 3.00mm) | Nonstandard | |
HPI0312-2R2M 3L Coils | 2.2 µH | 2.1 A | 105mOhm Max | 0.134" L x 0.118" W (3.40mm x 3.00mm) | Nonstandard | |
HPI0312-4R7M 3L Coils | 4.7 µH | 0.9 A | 190mOhm Max | 0.134" L x 0.118" W (3.40mm x 3.00mm) | Nonstandard |
