Inductor Datasheets

Browse and download PDF datasheets for inductors from leading manufacturers.

Product Attributes

All Delevan (24873)Pulse Electronics (17770)Bourns Inc. (10998)Gowanda (8081)Taiyo Yuden (8063)TDK (7746)Abracon (6926)Coilcraft (5980)

3L Coils

0.47 µH• 8 ANonstandard

3L Coils

3.3 µH• 3 ANonstandard

3L Coils

22 µH• 1 ANonstandard

Product	Inductance	Current	DCR	Size	Package	Actions
HPI0402-R47M 3L Coils	0.47 µH	8 A	11.3mOhm Max	0.173" L x 0.157" W (4.40mm x 4.00mm)	Nonstandard	View PDF

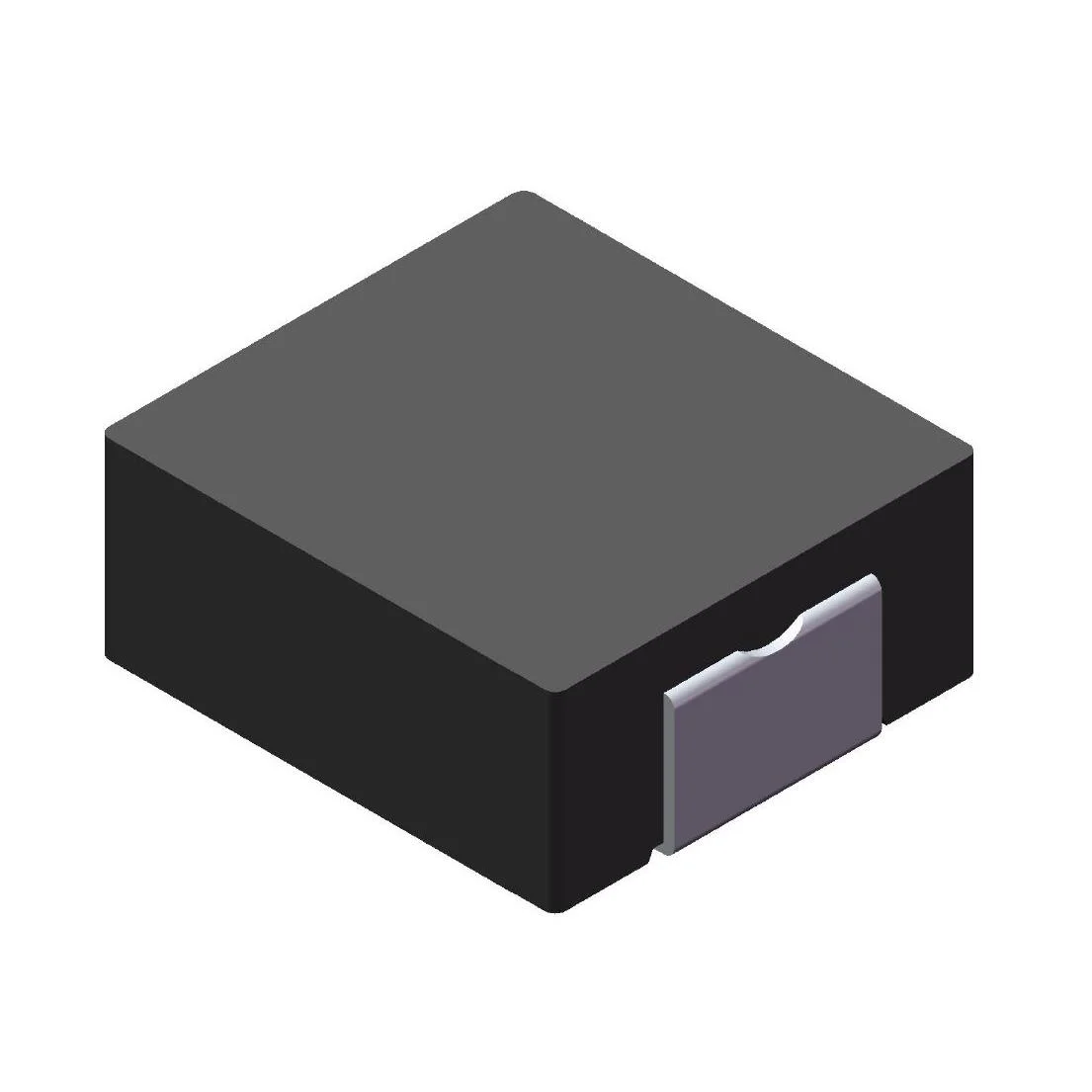

HPI0402-3R3M 3L Coils	3.3 µH	3 A	54mOhm Max	0.173" L x 0.157" W (4.40mm x 4.00mm)	Nonstandard	View PDF
HPI0402-220M 3L Coils	22 µH	1 A	320mOhm Max	0.173" L x 0.157" W (4.40mm x 4.00mm)	Nonstandard	View PDF
