Inductor Datasheets

Browse and download PDF datasheets for inductors from leading manufacturers.

Product Attributes

All Delevan (24873)Pulse Electronics (17770)Bourns Inc. (10998)Gowanda (8081)Taiyo Yuden (8063)TDK (7746)Abracon (6926)Coilcraft (5980)

LHP252010P-R47M

3L Coils

0.47 µH• 4.6 A1008 (2520 Metric)

LHP252010P-1R0M

3L Coils

1 µH• 3.8 A1008 (2520 Metric)

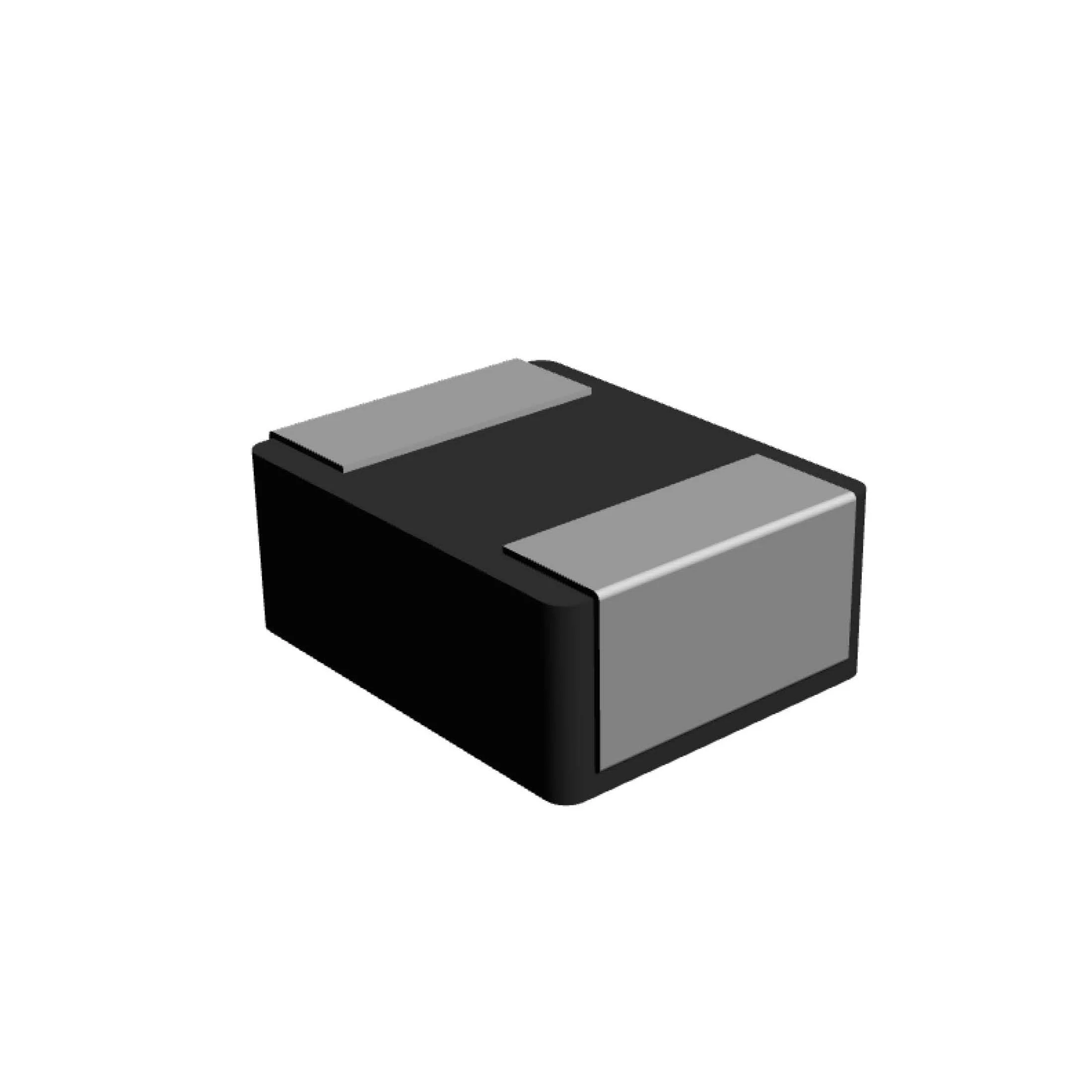

LHP252010P-4R7M

3L Coils

4.7 µH• 1.1 A1008 (2520 Metric)

Product	Inductance	Current	DCR	Size	Package	Actions
LHP252010P-R47M 3L Coils	0.47 µH	4.6 A	25mOhm Max	0.098" L x 0.079" W (2.50mm x 2.00mm)	1008 (2520 Metric)	View PDF
LHP252010P-1R0M 3L Coils	1 µH	3.8 A	46mOhm Max	0.098" L x 0.079" W (2.50mm x 2.00mm)	1008 (2520 Metric)	View PDF
LHP252010P-4R7M 3L Coils	4.7 µH	1.1 A	262mOhm Max	0.098" L x 0.079" W (2.50mm x 2.00mm)	1008 (2520 Metric)	View PDF
