Inductor Datasheets

Browse and download PDF datasheets for inductors from leading manufacturers.

Product Attributes

All Delevan (24873)Pulse Electronics (17770)Bourns Inc. (10998)Gowanda (8081)Taiyo Yuden (8063)TDK (7746)Abracon (6926)Coilcraft (5980)

LHP252012P-R24M

3L Coils

0.24 µH• 6.8 A1008 (2520 Metric)

LHP252012P-1R0M

3L Coils

1 µH• 3.4 A1008 (2520 Metric)

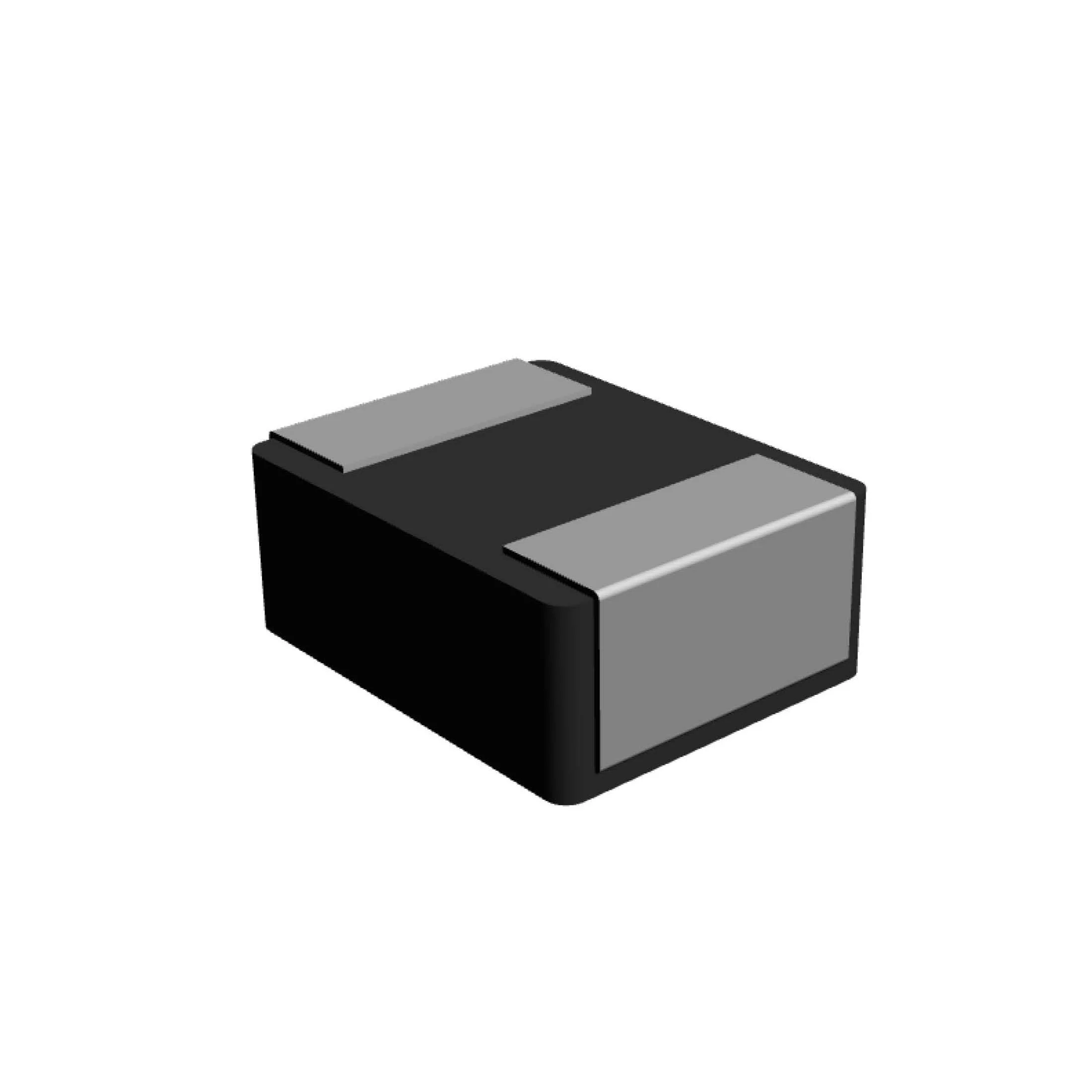

LHP252012P-3R3M

3L Coils

3.3 µH• 1.6 A1008 (2520 Metric)

Product	Inductance	Current	DCR	Size	Package	Actions
LHP252012P-R24M 3L Coils	0.24 µH	6.8 A	15mOhm Max	0.098" L x 0.079" W (2.50mm x 2.00mm)	1008 (2520 Metric)	View PDF
LHP252012P-1R0M 3L Coils	1 µH	3.4 A	42mOhm Max	0.098" L x 0.079" W (2.50mm x 2.00mm)	1008 (2520 Metric)	View PDF
LHP252012P-3R3M 3L Coils	3.3 µH	1.6 A	140mOhm Max	0.098" L x 0.079" W (2.50mm x 2.00mm)	1008 (2520 Metric)	View PDF
