LHP322512-R47M
3L Coils
- Inductance
- 0.47 µH
- Current
- 5.2 A
- DCR
- 22mOhm Max
- Size
- 0.126" L x 0.098" W (3.20mm x 2.50mm)
Inductor Datasheets
Browse and download PDF datasheets for inductors from leading manufacturers.
Series: LHP322512
Browse series tables and compare the available specifications.
LHP322512
LHP322520-1R0M
3L Coils
- Inductance
- 1 µH
- Current
- 4 A
- DCR
- 24mOhm Max
- Size
- 0.126" L x 0.098" W (3.20mm x 2.50mm)
LHP322512-2R2M
3L Coils
- Inductance
- 2.2 µH
- Current
- 2.6 A
- DCR
- 77mOhm Max
- Size
- 0.126" L x 0.098" W (3.20mm x 2.50mm)
LHP322520-2R2M
3L Coils
- Inductance
- 2.2 µH
- Current
- 2.6 A
- DCR
- 40mOhm Max
- Size
- 0.126" L x 0.098" W (3.20mm x 2.50mm)
LHP322520-3R3M
3L Coils
- Inductance
- 3.3 µH
- Current
- 2.1 A
- DCR
- 58mOhm Max
- Size
- 0.126" L x 0.098" W (3.20mm x 2.50mm)

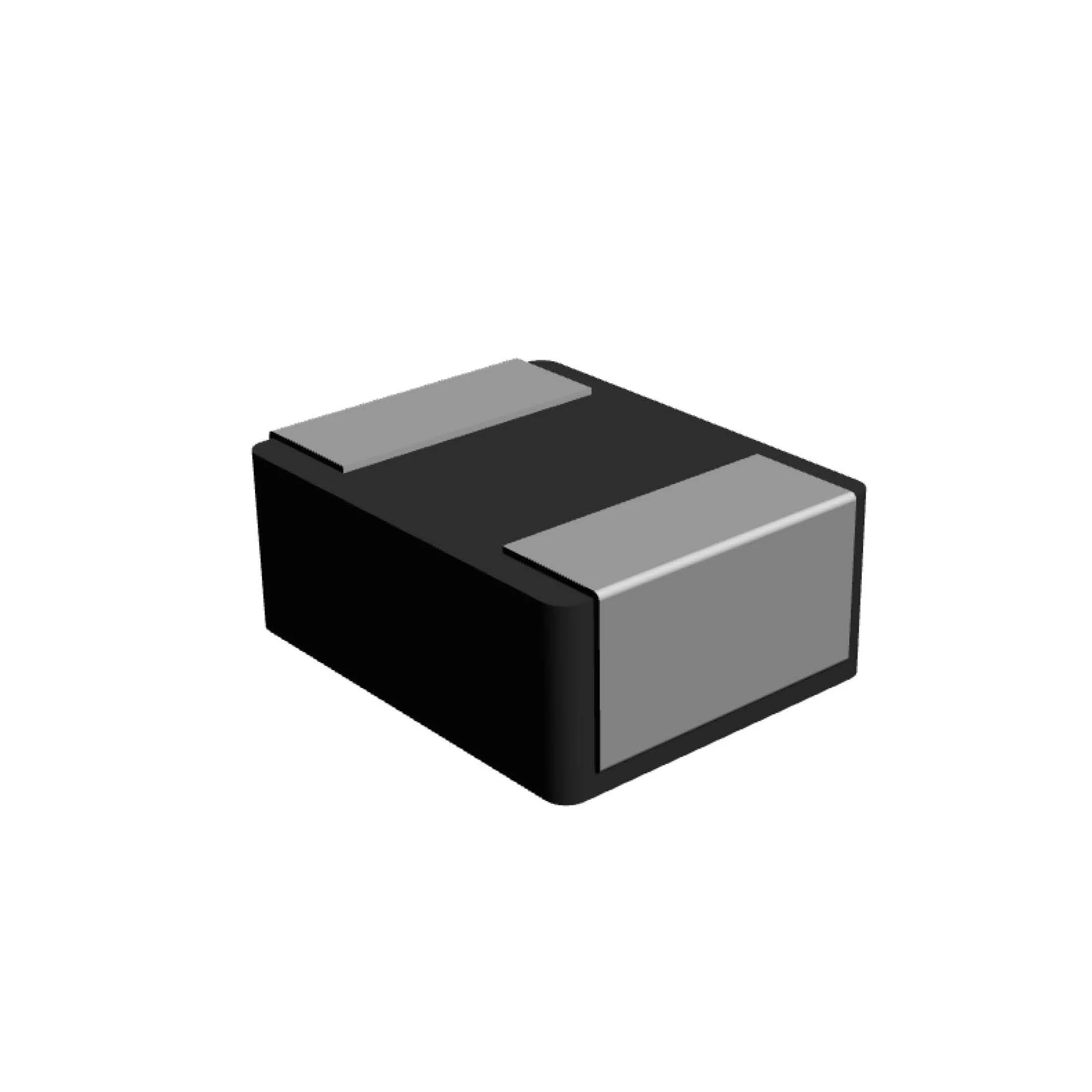

LHP322512-4R7M
3L Coils
- Inductance
- 4.7 µH
- Current
- 1.6 A
- DCR
- 157mOhm Max
- Size
- 0.126" L x 0.098" W (3.20mm x 2.50mm)
LHP322512-100M
3L Coils
- Inductance
- 10 µH
- Current
- 0.8 A
- DCR
- 410mOhm Max
- Size
- 0.126" L x 0.098" W (3.20mm x 2.50mm)
| Product | Inductance | Current | DCR | Size | Package | Actions |
|---|---|---|---|---|---|---|
LHP322512-R47M 3L Coils | 0.47 µH | 5.2 A | 22mOhm Max | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 1210 (3225 Metric) | |
LHP322520-1R0M 3L Coils | 1 µH | 4 A | 24mOhm Max | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 1210 (3225 Metric) | |
LHP322512-2R2M 3L Coils | 2.2 µH | 2.6 A | 77mOhm Max | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 1210 (3225 Metric) | |
LHP322520-2R2M 3L Coils | 2.2 µH | 2.6 A | 40mOhm Max | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 1210 (3225 Metric) | |
LHP322520-3R3M 3L Coils | 3.3 µH | 2.1 A | 58mOhm Max | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 1210 (3225 Metric) | |
LHP322512-4R7M 3L Coils | 4.7 µH | 1.6 A | 157mOhm Max | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 1210 (3225 Metric) | |
LHP322512-100M 3L Coils | 10 µH | 0.8 A | 410mOhm Max | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 1210 (3225 Metric) |
