Series: LMXS
Browse series tables and compare the available specifications.
Product Attributes
| Product | Inductance | Current | DCR | Size | Package | Actions |
|---|---|---|---|---|---|---|
 LMXS131JM680FTAS KYOCERA AVX | 68 µH | 2 A | 94mOhm Max | 0.492 L x 0.492 W (12.50mm x 12.50mm) | Nonstandard | |
 LMXS101DN470LTAS KYOCERA AVX | 47 µH | 2.1 A | 128mOhm Max | 0.413 L x 0.406 W (10.50mm x 10.30mm) | Nonstandard | |
 LMXS0606M471BTAS KYOCERA AVX | 470 µH | - | 2.58Ohm Max | 0.232 L x 0.232 W (5.90mm x 5.90mm) | Nonstandard | |

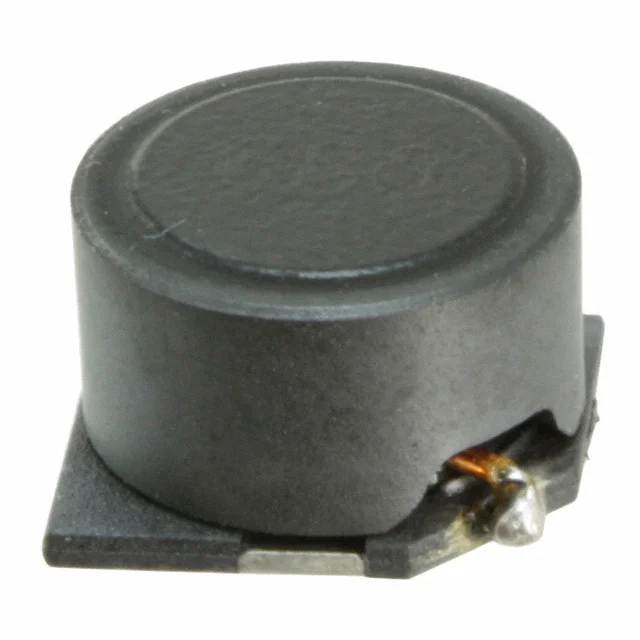

 LMXS07E7M470FTAS KYOCERA AVX | 47 µH | 750 mA | 150mOhm Max | 0.276 L x 0.276 W (7.00mm x 7.00mm) | Nonstandard | |

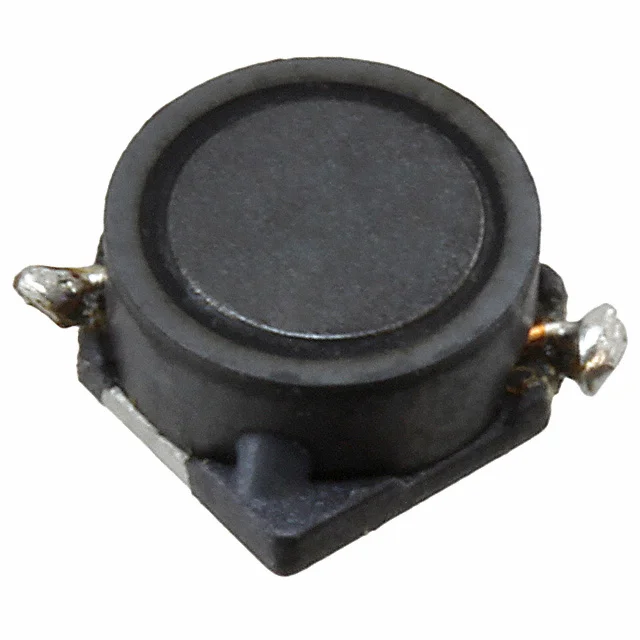

 LMXS06C6M100FTAS KYOCERA AVX | 10 µH | 1.3 A | 98mOhm Max | 0.236 L x 0.236 W (6.00mm x 6.00mm) | Nonstandard | |

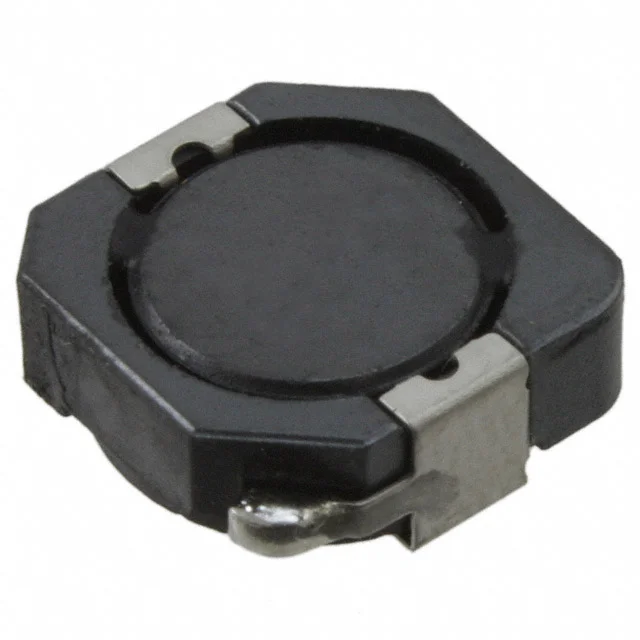

 LMXS101DN100LTAS KYOCERA AVX | 10 µH | 4.4 A | 35mOhm Max | 0.413 L x 0.406 W (10.50mm x 10.30mm) | Nonstandard | |
 LMXS101DN220LTAS KYOCERA AVX | 22 µH | 2.9 A | 73mOhm Max | 0.413 L x 0.406 W (10.50mm x 10.30mm) | Nonstandard | |

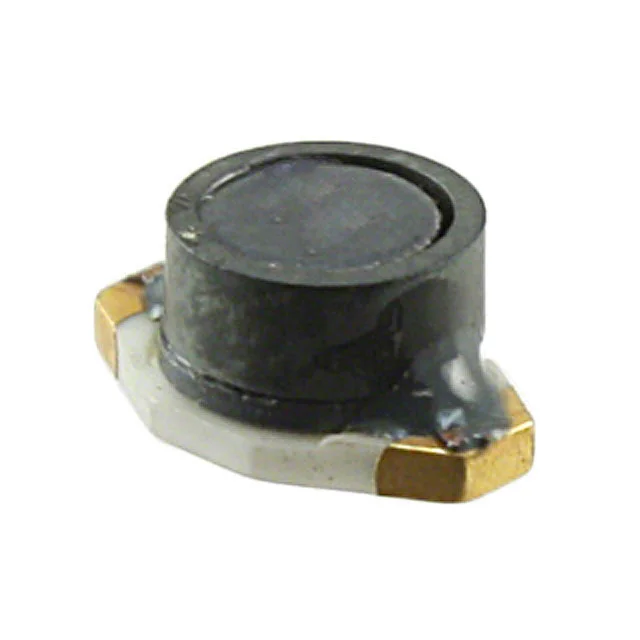

 LMXS0704M100DTAS KYOCERA AVX | 10 µH | 1 A | 75mOhm Max | 0.260 L x 0.175 W (6.60mm x 4.45mm) | Nonstandard | |
 LMXS0704M680DTAS KYOCERA AVX | 68 µH | 400 mA | 290mOhm Max | 0.260 L x 0.175 W (6.60mm x 4.45mm) | Nonstandard | |

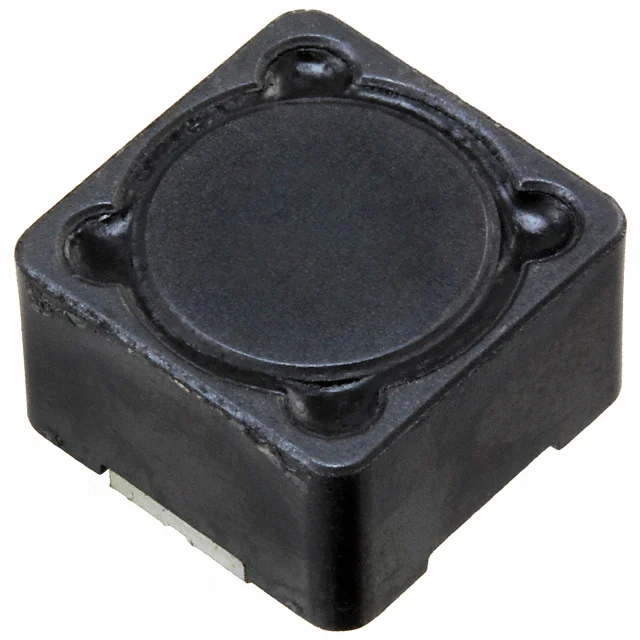

 LMXS121JM470HTAS KYOCERA AVX | 47 µH | 2.5 A | 100mOhm Max | 0.492 L x 0.492 W (12.50mm x 12.50mm) | Nonstandard | |

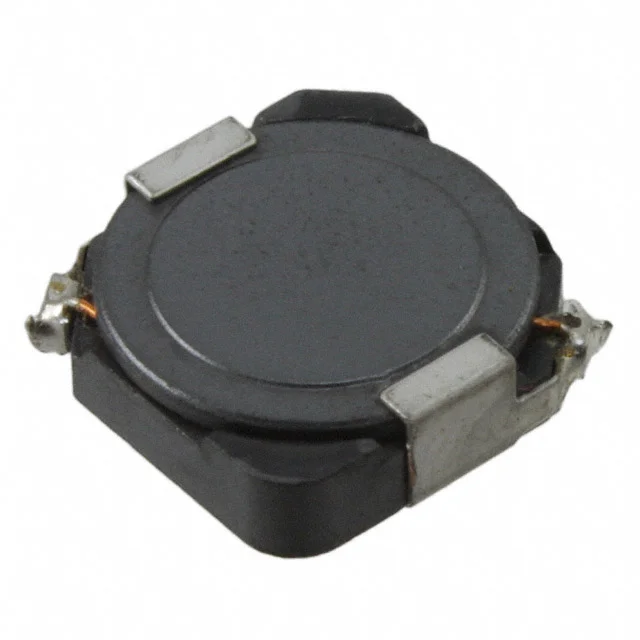

 LMXS1010N100LTAS KYOCERA AVX | 10 µH | 3.18 A | 59mOhm Max | 0.413 L x 0.406 W (10.50mm x 10.30mm) | Nonstandard | |
 LMXS1212M330HTAS KYOCERA AVX | 33 µH | 2.7 A | 97mOhm Max | 0.492 L x 0.492 W (12.50mm x 12.50mm) | Nonstandard | |
 LMXS131JM220FTAS KYOCERA AVX | 22 µH | 4 A | 32mOhm Max | 0.492 L x 0.492 W (12.50mm x 12.50mm) | Nonstandard | |
 LMXS131JM470FTAS KYOCERA AVX | 47 µH | 2.7 A | 64mOhm Max | 0.492 L x 0.492 W (12.50mm x 12.50mm) | Nonstandard |
