Inductor Datasheets
Browse and download PDF datasheets for inductors from leading manufacturers.

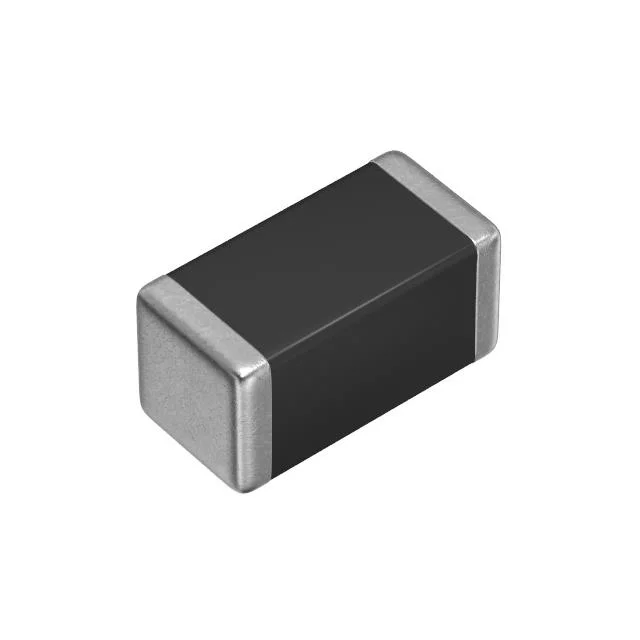

Series: MLJ-G
Browse series tables and compare the available specifications.
Product Attributes
| Product | Inductance | Current | DCR | Size | Package | Actions |
|---|---|---|---|---|---|---|
| 360 nH | 300 mA | 860mOhm Max | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0402 (1005 Metric) | ||
| 470 nH | 250 mA | 1.15Ohm Max | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0402 (1005 Metric) | ||
| 270 nH | 400 mA | 690mOhm Max | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0402 (1005 Metric) | ||
| 560 nH | 500 mA | 700mOhm Max | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0603 (1608 Metric) |
