Series: MPCG
Browse series tables and compare the available specifications.
Product Attributes
| Product | Inductance | Current | DCR | Size | Package | Actions |
|---|---|---|---|---|---|---|
 MPCG1040LR88 KEMET | 880 nH | 17 A | 2.3mOhm Max | 0.453" L x 0.394" W (11.50mm x 10.00mm) | Nonstandard | |
 MPCG0730LR40 KEMET | 400 nH | 16 A | 2.6mOhm Max | 0.295" L x 0.264" W (7.50mm x 6.70mm) | Nonstandard | |
 MPCG0740LR42 KEMET | 420 nH | 22 A | 1.55mOhm Max | 0.315" L x 0.264" W (8.00mm x 6.70mm) | Nonstandard | |
 MPCG1040LR36 KEMET | 360 nH | 25 A | 1.05mOhm Max | 0.453" L x 0.394" W (11.50mm x 10.00mm) | Nonstandard | |

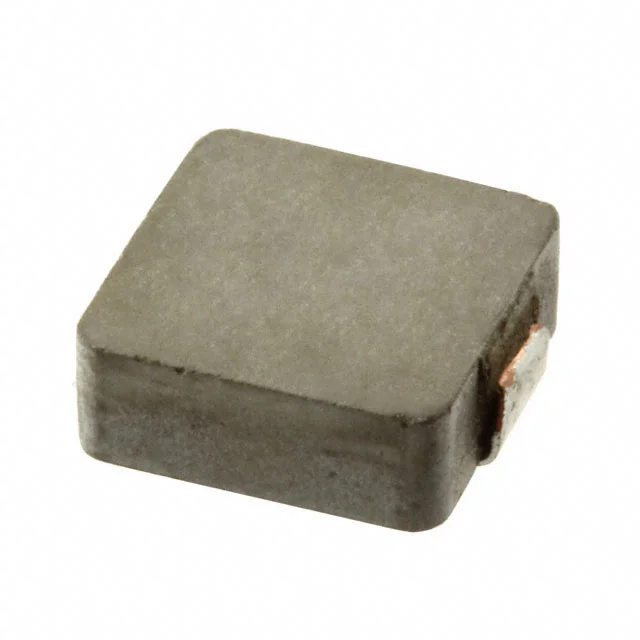

 MPCG1040LR45 KEMET | 450 nH | 25 A | 1.1mOhm Max | 0.453" L x 0.394" W (11.50mm x 10.00mm) | Nonstandard | |
 MPCG1040LR56 KEMET | 560 nH | 23 A | 1.3mOhm Max | 0.453" L x 0.394" W (11.50mm x 10.00mm) | Nonstandard |
