MPH201214S4R7MT
Sunlord
- Inductance
- 4.7 µH
- Current
- 750 mA
- DCR
- 500mOhm Max
- Size
- 0.079" L x 0.049" W (2.00mm x 1.25mm)
Inductor Datasheets
Browse and download PDF datasheets for inductors from leading manufacturers.
Series: MPH
Browse series tables and compare the available specifications.
MPH
MPH160805S1R0MT
Sunlord
- Inductance
- 1 µH
- Current
- 800 mA
- DCR
- 400mOhm Max
- Size
- 0.063" L x 0.031" W (1.60mm x 0.80mm)
MPH160809S4R7MT
Sunlord
- Inductance
- 4.7 µH
- Current
- 700 mA
- DCR
- 500mOhm Max
- Size
- 0.063" L x 0.031" W (1.60mm x 0.80mm)
MPH160809S1R5MT
Sunlord
- Inductance
- 1.5 µH
- Current
- 900 mA
- DCR
- 285mOhm Max
- Size
- 0.063" L x 0.031" W (1.60mm x 0.80mm)
MPH201206S1R0MT
Sunlord
- Inductance
- 1 µH
- Current
- 800 mA
- DCR
- 238mOhm Max
- Size
- 0.079" L x 0.049" W (2.00mm x 1.25mm)
MPH201610S1R0MT
Sunlord
- Inductance
- 1 µH
- Current
- 1.4 A
- DCR
- 112mOhm Max
- Size
- 0.079" L x 0.063" W (2.00mm x 1.60mm)

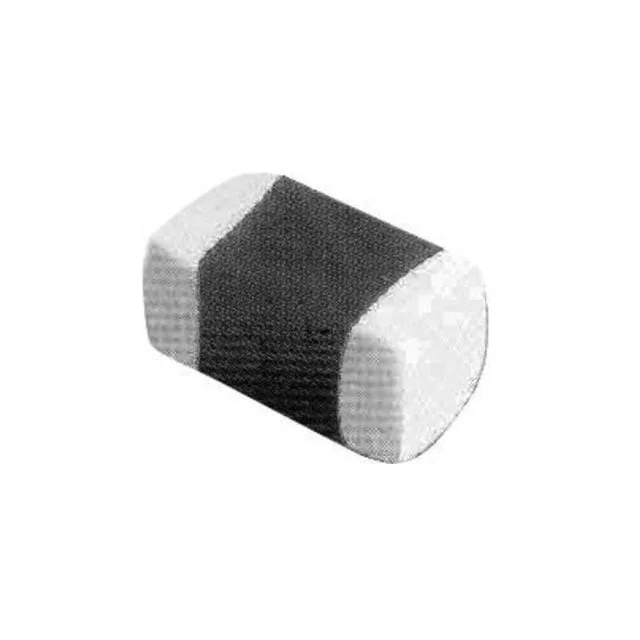

MPH201610S2R2MT
Sunlord
- Inductance
- 2.2 µH
- Current
- 1.2 A
- DCR
- 137mOhm Max
- Size
- 0.079" L x 0.063" W (2.00mm x 1.60mm)
MPH252010C2R2MT
Sunlord
- Inductance
- 2.2 µH
- Current
- 1.2 A
- DCR
- 250mOhm Max
- Size
- 0.098" L x 0.079" W (2.50mm x 2.00mm)
MPH252010C100MT
Sunlord
- Inductance
- 10 µH
- Current
- 700 mA
- DCR
- 625mOhm Max
- Size
- 0.098" L x 0.079" W (2.50mm x 2.00mm)
MPH252010S1R0MT
Sunlord
- Inductance
- 1 µH
- Current
- 1.6 A
- DCR
- 75mOhm Max
- Size
- 0.098" L x 0.079" W (2.50mm x 2.00mm)
MPH160805SR33MT
Sunlord
- Inductance
- 330 nH
- Current
- 1.1 A
- DCR
- 200mOhm Max
- Size
- 0.063" L x 0.031" W (1.60mm x 0.80mm)
MPH160809SR22MT
Sunlord
- Inductance
- 220 nH
- Current
- 1.25 A
- DCR
- 125mOhm Max
- Size
- 0.063" L x 0.031" W (1.60mm x 0.80mm)
MPH160809SR68MT
Sunlord
- Inductance
- 680 nH
- Current
- 1.15 A
- DCR
- 225mOhm Max
- Size
- 0.063" L x 0.031" W (1.60mm x 0.80mm)
MPH201206S2R2MT
Sunlord
- Inductance
- 2.2 µH
- Current
- 600 mA
- DCR
- 400mOhm Max
- Size
- 0.079" L x 0.049" W (2.00mm x 1.25mm)
MPH201206S1R5MT
Sunlord
- Inductance
- 1.5 µH
- Current
- 700 mA
- DCR
- 325mOhm Max
- Size
- 0.079" L x 0.049" W (2.00mm x 1.25mm)
MPH160809S3R3MT
Sunlord
- Inductance
- 3.3 µH
- Current
- 700 mA
- DCR
- 500mOhm Max
- Size
- 0.063" L x 0.031" W (1.60mm x 0.80mm)
MPH201206SR47MT
Sunlord
- Inductance
- 470 nH
- Current
- 1.1 A
- DCR
- 150mOhm Max
- Size
- 0.079" L x 0.049" W (2.00mm x 1.25mm)
MPH201206SR33MT
Sunlord
- Inductance
- 330 nH
- Current
- 1.2 A
- DCR
- 125mOhm Max
- Size
- 0.079" L x 0.049" W (2.00mm x 1.25mm)
MPH160809S2R7MT
Sunlord
- Inductance
- 2.7 µH
- Current
- 750 mA
- DCR
- 425mOhm Max
- Size
- 0.063" L x 0.031" W (1.60mm x 0.80mm)
MPH201205SR54MT
Sunlord
- Inductance
- 540 nH
- Current
- 1.2 A
- DCR
- 150mOhm Max
- Size
- 0.079" L x 0.049" W (2.00mm x 1.25mm)
MPH201206SR22MT
Sunlord
- Inductance
- 220 nH
- Current
- 1.6 A
- DCR
- 94mOhm Max
- Size
- 0.079" L x 0.049" W (2.00mm x 1.25mm)
MPH160805SR47MT
Sunlord
- Inductance
- 470 nH
- Current
- 1.15 A
- DCR
- 225mOhm Max
- Size
- 0.063" L x 0.031" W (1.60mm x 0.80mm)
MPH201205S1R0MT
Sunlord
- Inductance
- 1 µH
- Current
- 900 mA
- DCR
- 225mOhm Max
- Size
- 0.079" L x 0.049" W (2.00mm x 1.25mm)
MPH160809SR33MT
Sunlord
- Inductance
- 330 nH
- Current
- 1.2 A
- DCR
- 162mOhm Max
- Size
- 0.063" L x 0.031" W (1.60mm x 0.80mm)
MPH160809SR47MT
Sunlord
- Inductance
- 470 nH
- Current
- 1.1 A
- DCR
- 187mOhm Max
- Size
- 0.063" L x 0.031" W (1.60mm x 0.80mm)
| Product | Inductance | Current | DCR | Size | Package | Actions |
|---|---|---|---|---|---|---|
MPH201214S4R7MT Sunlord | 4.7 µH | 750 mA | 500mOhm Max | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0805 (2012 Metric) | |
MPH160805S1R0MT Sunlord | 1 µH | 800 mA | 400mOhm Max | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0603 (1608 Metric) | |
MPH160809S4R7MT Sunlord | 4.7 µH | 700 mA | 500mOhm Max | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0603 (1608 Metric) | |
MPH160809S1R5MT Sunlord | 1.5 µH | 900 mA | 285mOhm Max | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0603 (1608 Metric) | |
MPH201206S1R0MT Sunlord | 1 µH | 800 mA | 238mOhm Max | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0805 (2012 Metric) | |
MPH201610S1R0MT Sunlord | 1 µH | 1.4 A | 112mOhm Max | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0806 (2016 Metric) | |
MPH201610S2R2MT Sunlord | 2.2 µH | 1.2 A | 137mOhm Max | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0806 (2016 Metric) | |
MPH252010C2R2MT Sunlord | 2.2 µH | 1.2 A | 250mOhm Max | 0.098" L x 0.079" W (2.50mm x 2.00mm) | Nonstandard | |
MPH252010C100MT Sunlord | 10 µH | 700 mA | 625mOhm Max | 0.098" L x 0.079" W (2.50mm x 2.00mm) | Nonstandard | |
MPH252010S1R0MT Sunlord | 1 µH | 1.6 A | 75mOhm Max | 0.098" L x 0.079" W (2.50mm x 2.00mm) | Nonstandard | |
MPH160805SR33MT Sunlord | 330 nH | 1.1 A | 200mOhm Max | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0603 (1608 Metric) | |
MPH160809SR22MT Sunlord | 220 nH | 1.25 A | 125mOhm Max | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0603 (1608 Metric) | |
MPH160809SR68MT Sunlord | 680 nH | 1.15 A | 225mOhm Max | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0603 (1608 Metric) | |
MPH201206S2R2MT Sunlord | 2.2 µH | 600 mA | 400mOhm Max | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0805 (2012 Metric) | |
MPH201206S1R5MT Sunlord | 1.5 µH | 700 mA | 325mOhm Max | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0805 (2012 Metric) | |
MPH160809S3R3MT Sunlord | 3.3 µH | 700 mA | 500mOhm Max | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0603 (1608 Metric) | |
MPH201206SR47MT Sunlord | 470 nH | 1.1 A | 150mOhm Max | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0805 (2012 Metric) | |
MPH201206SR33MT Sunlord | 330 nH | 1.2 A | 125mOhm Max | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0805 (2012 Metric) | |
MPH160809S2R7MT Sunlord | 2.7 µH | 750 mA | 425mOhm Max | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0603 (1608 Metric) | |
MPH201205SR54MT Sunlord | 540 nH | 1.2 A | 150mOhm Max | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0805 (2012 Metric) | |
MPH201206SR22MT Sunlord | 220 nH | 1.6 A | 94mOhm Max | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0805 (2012 Metric) | |
MPH160805SR47MT Sunlord | 470 nH | 1.15 A | 225mOhm Max | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0603 (1608 Metric) | |
MPH201205S1R0MT Sunlord | 1 µH | 900 mA | 225mOhm Max | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0805 (2012 Metric) | |
MPH160809SR33MT Sunlord | 330 nH | 1.2 A | 162mOhm Max | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0603 (1608 Metric) | |
MPH160809SR47MT Sunlord | 470 nH | 1.1 A | 187mOhm Max | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0603 (1608 Metric) |
