Browse and download PDF datasheets for inductors from leading manufacturers.
| Product | Inductance | Current | DCR | Size | Package | Actions |
|---|---|---|---|---|---|---|
| 2.2 µH | 2.6 A | 97.4mOhm Max | 0.126" L x 0.118" W (3.20mm x 3.00mm) | Nonstandard | ||
| 1.5 µH | 3 A | 73.1mOhm Max | 0.126" L x 0.118" W (3.20mm x 3.00mm) | Nonstandard | ||
| 4.7 µH | 2 A | 205mOhm Max | 0.173" L x 0.161" W (4.40mm x 4.10mm) | Nonstandard | ||
| 1 µH | 3.8 A | 42.2mOhm Max | 0.126" L x 0.118" W (3.20mm x 3.00mm) | Nonstandard | ||
| 2.2 µH | 3.1 A | 71mOhm Max | 0.173" L x 0.161" W (4.40mm x 4.10mm) | Nonstandard | ||
| 680 nH | - | - | 0.173" L x 0.161" W (4.40mm x 4.10mm) | Nonstandard | ||
| 1 µH | 2.8 A | 65mOhm Max | 0.126" L x 0.118" W (3.20mm x 3.00mm) | Nonstandard | ||
| 1 µH | 5 A | 34.7mOhm Max | 0.173" L x 0.161" W (4.40mm x 4.10mm) | Nonstandard | ||
| 3.3 µH | 1.5 A | 210mOhm Max | 0.126" L x 0.118" W (3.20mm x 3.00mm) | Nonstandard | ||

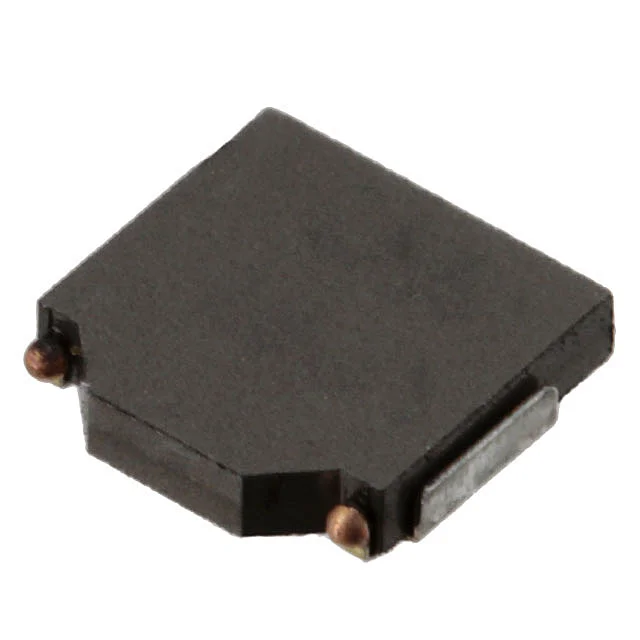

| 1 µH | 4.1 A | 44mOhm Max | 0.213" L x 0.201" W (5.40mm x 5.10mm) | Nonstandard | ||
| 3.3 µH | 2 A | 151.9mOhm Max | 0.126" L x 0.118" W (3.20mm x 3.00mm) | Nonstandard | ||
| 3.3 µH | 6.8 A | 29.7mOhm Max | 0.280" L x 0.256" W (7.10mm x 6.50mm) | Nonstandard | ||
| 680 nH | 16 A | 5.39mOhm Max | 0.280" L x 0.256" W (7.10mm x 6.50mm) | Nonstandard | ||
| 250 nH | 23 A | 2.31mOhm Max | 0.280" L x 0.256" W (7.10mm x 6.50mm) | Nonstandard | ||
| 2.2 µH | 12 A | 7.5mOhm Max | 0.421" L x 0.394" W (10.70mm x 10.00mm) | Nonstandard | ||
| 1 µH | 8 A | 15.51mOhm Max | 0.165" L x 0.157" W (4.20mm x 4.00mm) | Nonstandard | ||

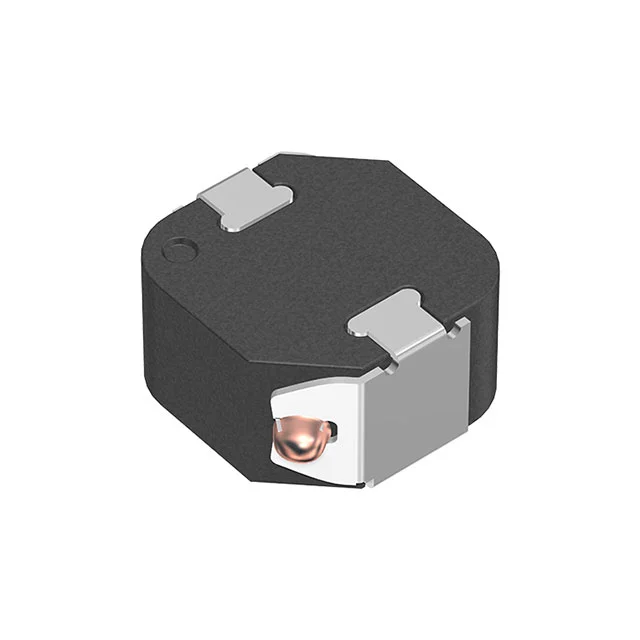

| 4.7 µH | 4.7 A | 49.5mOhm Max | 0.205" L x 0.197" W (5.20mm x 5.00mm) | Nonstandard | ||
| 470 nH | 20.1 A | 2.9mOhm Max | 0.280" L x 0.256" W (7.10mm x 6.50mm) | 2-SMD, J-Lead | ||

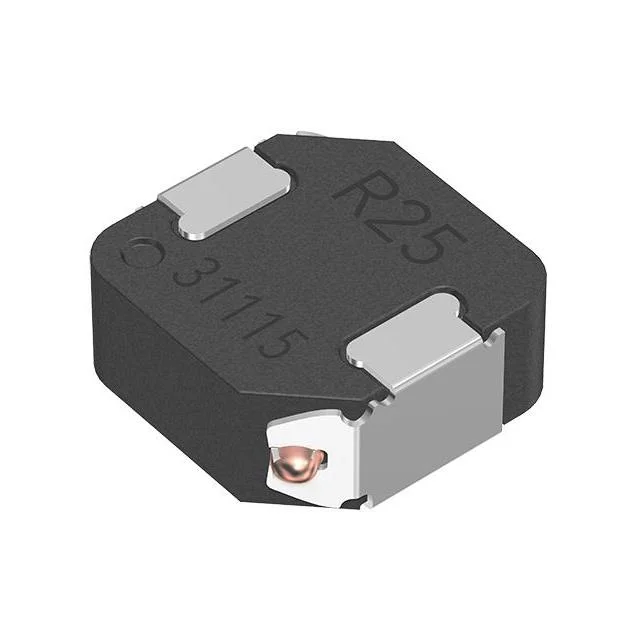

| 6.8 µH | 4 A | 53.3mOhm Max | 0.280" L x 0.256" W (7.10mm x 6.50mm) | Nonstandard | ||
| 2.2 µH | 4.8 A | 40.15mOhm Max | 0.165" L x 0.157" W (4.20mm x 4.00mm) | Nonstandard | ||
| 470 nH | 14 A | 5.94mOhm Max | 0.205" L x 0.197" W (5.20mm x 5.00mm) | Nonstandard | ||
| 350 nH | 16.6 A | 4.29mOhm Max | 0.205" L x 0.197" W (5.20mm x 5.00mm) | Nonstandard | ||

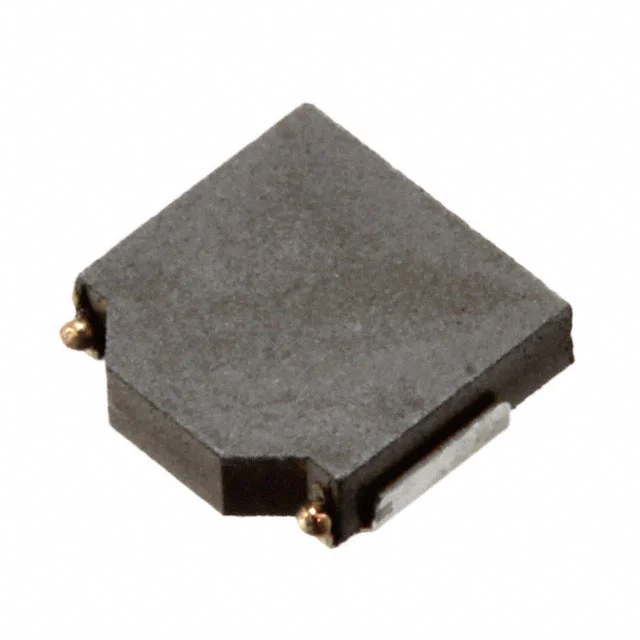

| 4.7 µH | 2.2 A | 144.1mOhm Max | 0.173" L x 0.161" W (4.40mm x 4.10mm) | Nonstandard | ||
| 1.5 µH | 11 A | 10.67mOhm Max | 0.280" L x 0.256" W (7.10mm x 6.50mm) | Nonstandard | ||
| 470 nH | 20 A | 3.63mOhm Max | 0.280" L x 0.256" W (7.10mm x 6.50mm) | Nonstandard |
