Inductor Datasheets

Browse and download PDF datasheets for inductors from leading manufacturers.

Product Attributes

All Delevan (24873)Pulse Electronics (17770)Bourns Inc. (10998)Gowanda (8081)Taiyo Yuden (8063)TDK (7746)Abracon (6926)Coilcraft (5980)

3L Coils

0.47 µH• 9 ANonstandard

3L Coils

1 µH• 6.8 ANonstandard

3L Coils

2.2 µH• 4.6 ANonstandard

Product	Inductance	Current	DCR	Size	Package	Actions
TUP0421W-R47M 3L Coils	0.47 µH	9 A	8.58mOhm Max	0.161" L x 0.161" W (4.10mm x 4.10mm)	Nonstandard	View PDF
TUP0421W-1R0M 3L Coils	1 µH	6.8 A	14.6mOhm Max	0.161" L x 0.161" W (4.10mm x 4.10mm)	Nonstandard	View PDF

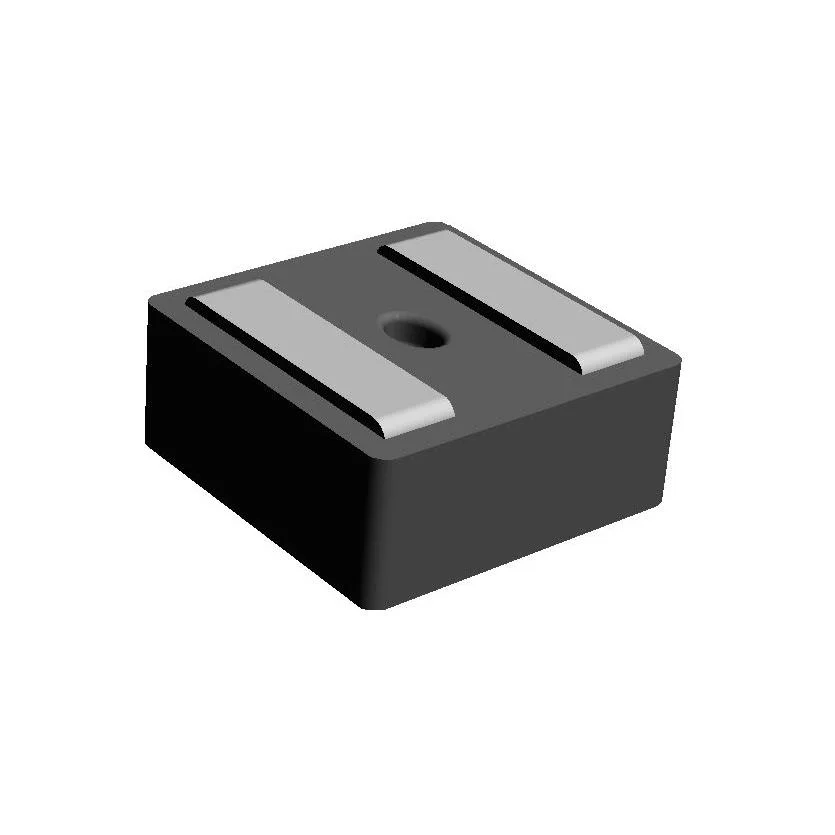

TUP0421W-2R2M 3L Coils	2.2 µH	4.6 A	38.7mOhm Max	0.161" L x 0.161" W (4.10mm x 4.10mm)	Nonstandard	View PDF
