TUP0606W-1R0M
3L Coils
- Inductance
- 1 µH
- Current
- 16 A
- DCR
- 4.4mOhm Max
- Size
- 0.260" L x 0.252" W (6.60mm x 6.40mm)
Inductor Datasheets
Browse and download PDF datasheets for inductors from leading manufacturers.
Series: TUP0606W
Browse series tables and compare the available specifications.
TUP0606W
TUP0606W-1R5M
3L Coils
- Inductance
- 1.5 µH
- Current
- 13.5 A
- DCR
- 6.1mOhm Max
- Size
- 0.260" L x 0.252" W (6.60mm x 6.40mm)

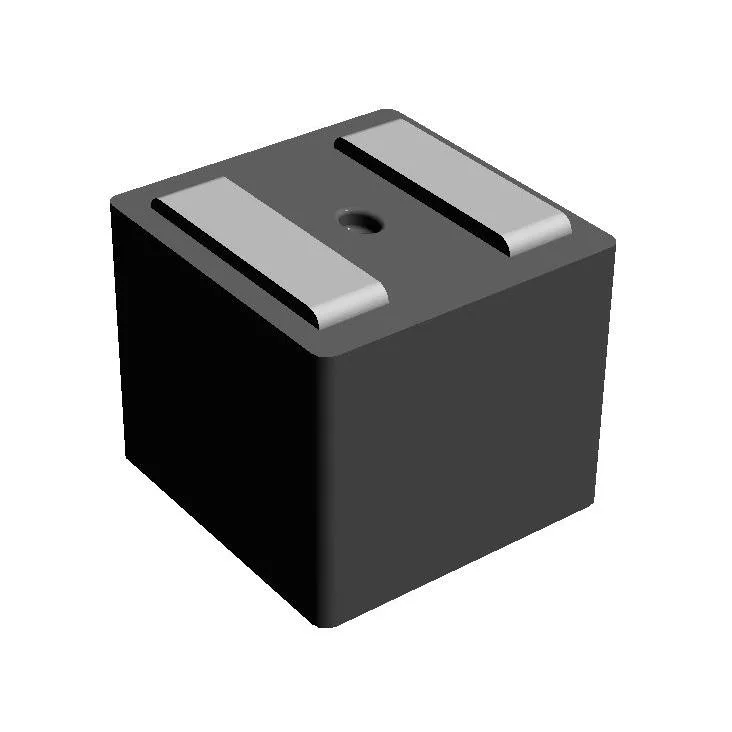

TUP0606W-4R7M
3L Coils
- Inductance
- 4.7 µH
- Current
- 8.5 A
- DCR
- 14.4mOhm Max
- Size
- 0.260" L x 0.252" W (6.60mm x 6.40mm)
TUP0606W-220M
3L Coils
- Inductance
- 22 µH
- Current
- 3.8 A
- DCR
- 60.63mOhm Max
- Size
- 0.260" L x 0.252" W (6.60mm x 6.40mm)
| Product | Inductance | Current | DCR | Size | Package | Actions |
|---|---|---|---|---|---|---|
TUP0606W-1R0M 3L Coils | 1 µH | 16 A | 4.4mOhm Max | 0.260" L x 0.252" W (6.60mm x 6.40mm) | Nonstandard | |
TUP0606W-1R5M 3L Coils | 1.5 µH | 13.5 A | 6.1mOhm Max | 0.260" L x 0.252" W (6.60mm x 6.40mm) | Nonstandard | |
TUP0606W-4R7M 3L Coils | 4.7 µH | 8.5 A | 14.4mOhm Max | 0.260" L x 0.252" W (6.60mm x 6.40mm) | Nonstandard | |
TUP0606W-220M 3L Coils | 22 µH | 3.8 A | 60.63mOhm Max | 0.260" L x 0.252" W (6.60mm x 6.40mm) | Nonstandard |
