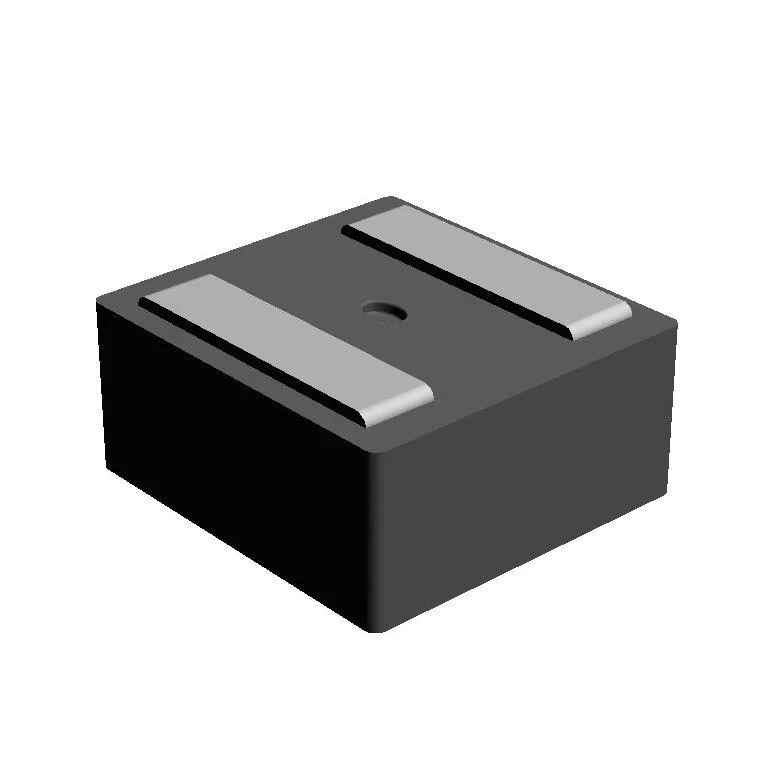

TUP1508W-2R2M
3L Coils
- Inductance
- 2.2 µH
- Current
- 28 A
- DCR
- 2.48mOhm Max
- Size
- 0.650" L x 0.610" W (16.50mm x 15.50mm)
Inductor Datasheets
Browse and download PDF datasheets for inductors from leading manufacturers.
Series: TUP1508W
Browse series tables and compare the available specifications.
TUP1508W
TUP1508W-5R3M
3L Coils
- Inductance
- 5.3 µH
- Current
- 19.5 A
- DCR
- 5.34mOhm Max
- Size
- 0.650" L x 0.610" W (16.50mm x 15.50mm)
TUP1508W-220M
3L Coils
- Inductance
- 22 µH
- Current
- 9 A
- DCR
- 23.2mOhm Max
- Size
- 0.650" L x 0.610" W (16.50mm x 15.50mm)
| Product | Inductance | Current | DCR | Size | Package | Actions |
|---|---|---|---|---|---|---|
TUP1508W-2R2M 3L Coils | 2.2 µH | 28 A | 2.48mOhm Max | 0.650" L x 0.610" W (16.50mm x 15.50mm) | Nonstandard | |
TUP1508W-5R3M 3L Coils | 5.3 µH | 19.5 A | 5.34mOhm Max | 0.650" L x 0.610" W (16.50mm x 15.50mm) | Nonstandard | |
TUP1508W-220M 3L Coils | 22 µH | 9 A | 23.2mOhm Max | 0.650" L x 0.610" W (16.50mm x 15.50mm) | Nonstandard |
