Inductor Datasheets

Browse and download PDF datasheets for inductors from leading manufacturers.

Product Attributes

All Delevan (24873)Pulse Electronics (17770)Bourns Inc. (10998)Gowanda (8081)Taiyo Yuden (8063)TDK (7746)Abracon (6926)Coilcraft (5980)

3L Coils

5.6 µH• 21 ANonstandard

3L Coils

10 µH• 18 ANonstandard

3L Coils

22 µH• 10.5 ANonstandard

Product	Inductance	Current	DCR	Size	Package	Actions

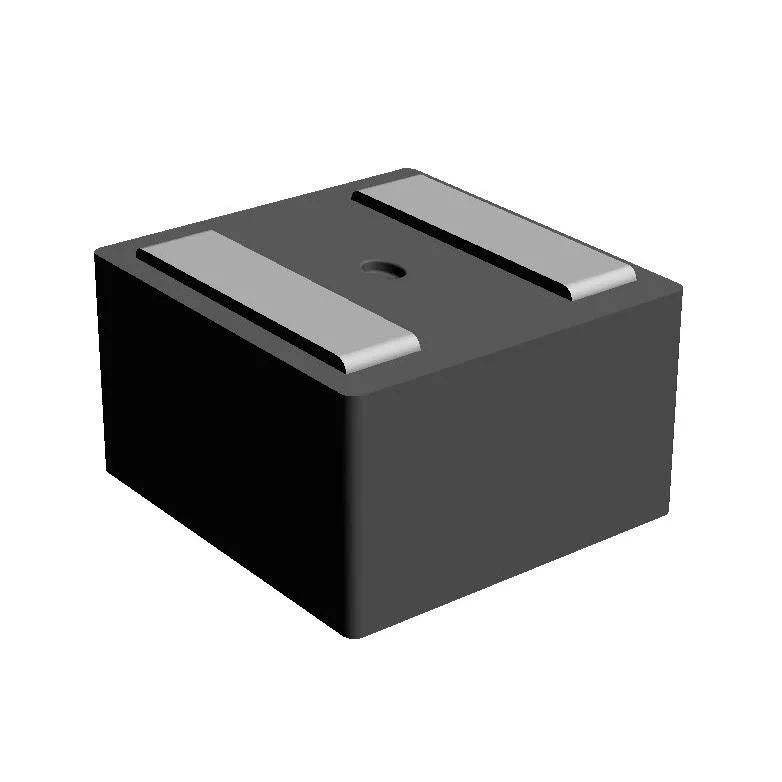

TUP1510W-5R6M 3L Coils	5.6 µH	21 A	4.2mOhm Max	0.650" L x 0.610" W (16.50mm x 15.50mm)	Nonstandard	View PDF
TUP1510W-100M 3L Coils	10 µH	18 A	8.6mOhm Max	0.650" L x 0.610" W (16.50mm x 15.50mm)	Nonstandard	View PDF
TUP1510W-220M 3L Coils	22 µH	10.5 A	15.8mOhm Max	0.650" L x 0.610" W (16.50mm x 15.50mm)	Nonstandard	View PDF
