Inductor Datasheets

Browse and download PDF datasheets for inductors from leading manufacturers.

Product Attributes

All Delevan (24873)Pulse Electronics (17770)Bourns Inc. (10998)Gowanda (8081)Taiyo Yuden (8063)TDK (7746)Abracon (6926)Coilcraft (5980)

3L Coils

4.7 µH• 23 ANonstandard

3L Coils

10 µH• 19 ANonstandard

3L Coils

33 µH• 9 ANonstandard

Product	Inductance	Current	DCR	Size	Package	Actions
TUP1513W-4R7M 3L Coils	4.7 µH	23 A	3.3mOhm Max	0.650" L x 0.610" W (16.50mm x 15.50mm)	Nonstandard	View PDF

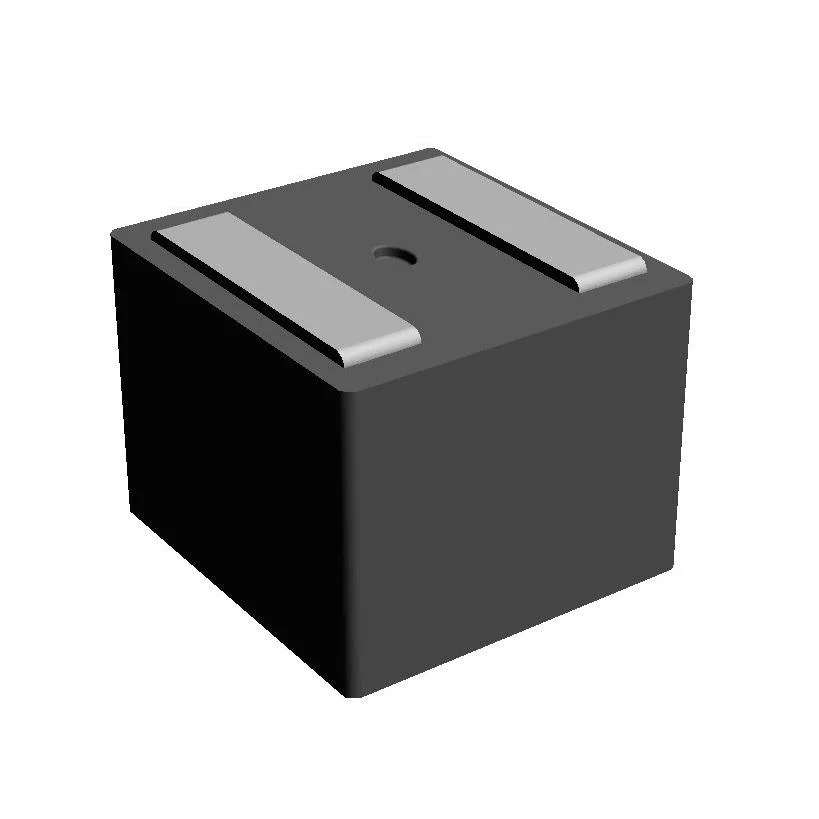

TUP1513W-100M 3L Coils	10 µH	19 A	7mOhm Max	0.650" L x 0.610" W (16.50mm x 15.50mm)	Nonstandard	View PDF
TUP1513W-330M 3L Coils	33 µH	9 A	22.2mOhm Max	0.650" L x 0.610" W (16.50mm x 15.50mm)	Nonstandard	View PDF
