Inductor Datasheets

Browse and download PDF datasheets for inductors from leading manufacturers.

Product Attributes

All Delevan (24873)Pulse Electronics (17770)Bourns Inc. (10998)Gowanda (8081)Taiyo Yuden (8063)TDK (7746)Abracon (6926)Coilcraft (5980)

3L Coils

3.3 µH• 35 ANonstandard

3L Coils

22 µH• 12 ANonstandard

3L Coils

47 µH• 8.7 ANonstandard

Product	Inductance	Current	DCR	Size	Package	Actions

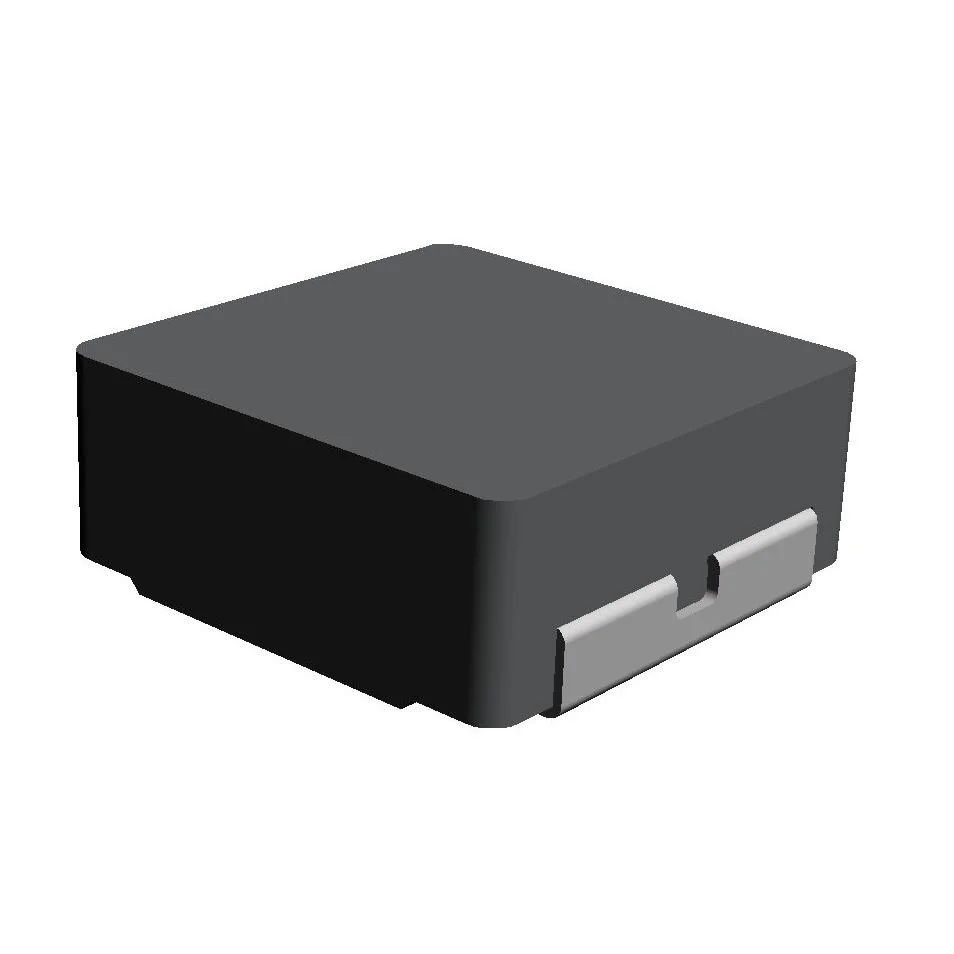

UPIF1707-3R3M 3L Coils	3.3 µH	35 A	2.93mOhm Max	0.681" L x 0.669" W (17.30mm x 17.00mm)	Nonstandard	View PDF
UPIF1707-220M 3L Coils	22 µH	12 A	21mOhm Max	0.681" L x 0.669" W (17.30mm x 17.00mm)	Nonstandard	View PDF
UPIF1707-470M 3L Coils	47 µH	8.7 A	42.7mOhm Max	0.681" L x 0.669" W (17.30mm x 17.00mm)	Nonstandard	View PDF
