Description

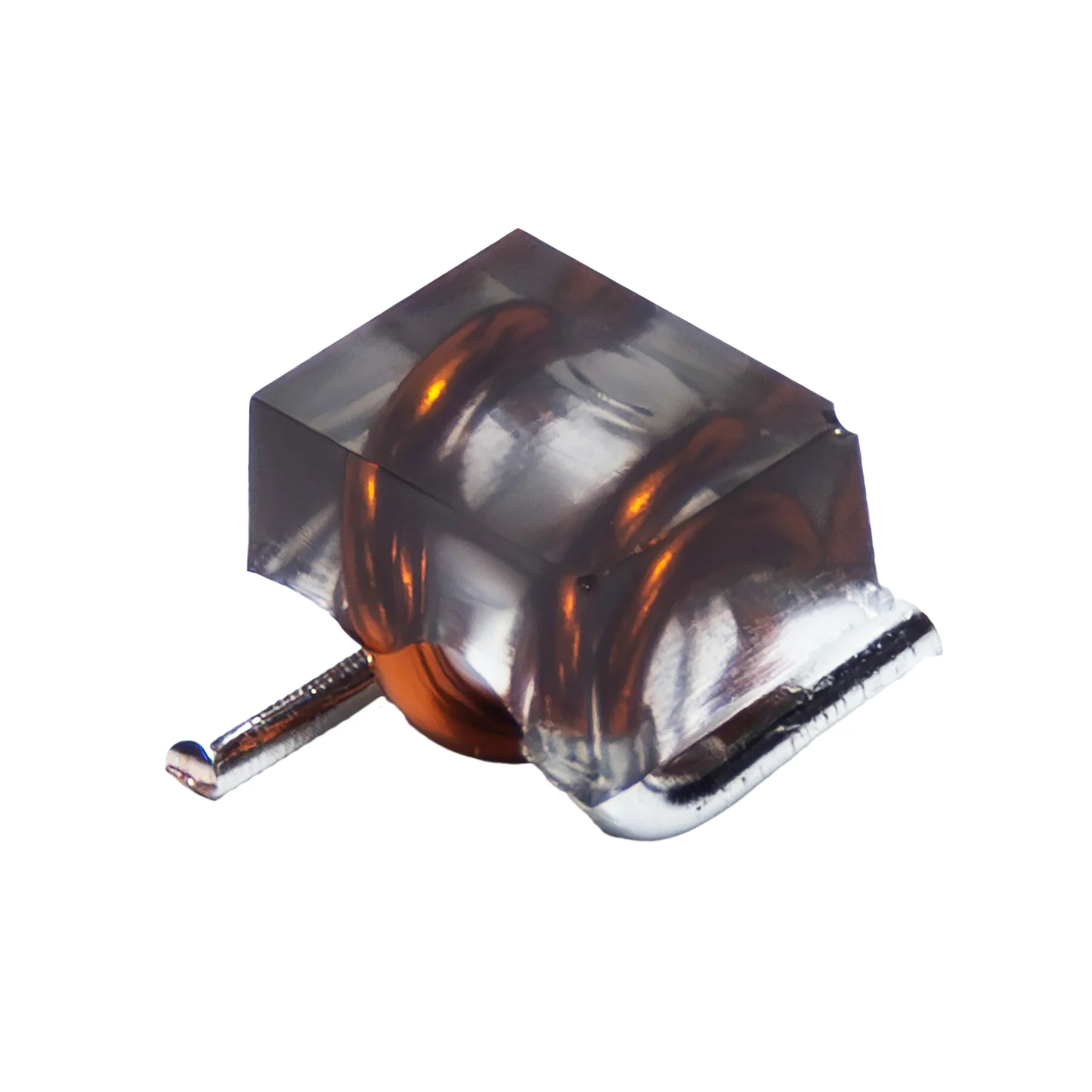

FIXED IND 12.5NH 4A 3.4 MOHM SMD
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for AC3630R-12NG.
AC3630R-12NG has an inductance value of 12.5 nH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
AC3630R-12NG is rated for 4 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
AC3630R-12NG lists a DC resistance of 3.4mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
AC3630R-12NG uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from AC3630R-12NG to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 12.5 nH |
| Tolerance | ±2% |
| Current Rating | 4 A |
| DC Resistance (DCR) | 3.4mOhm Max |
| Operating Temperature | -25°C ~ 125°C |
| Dimensions | 0.145" L x 0.120" W (3.68mm x 3.05mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 12.5NH 4A 3.4 MOHM SMD |
| Series | AC3630R |
| Product Status | Active |
| Type / Construction | Wirewound |
| Core Material | Air |
| Shielding | Unshielded |
| Q @ Frequency | 137 @ 150MHz |
| Self Resonant Frequency | 3.3GHz |
| Inductance Test Frequency | 150 MHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.125" (3.18mm) |
