Description

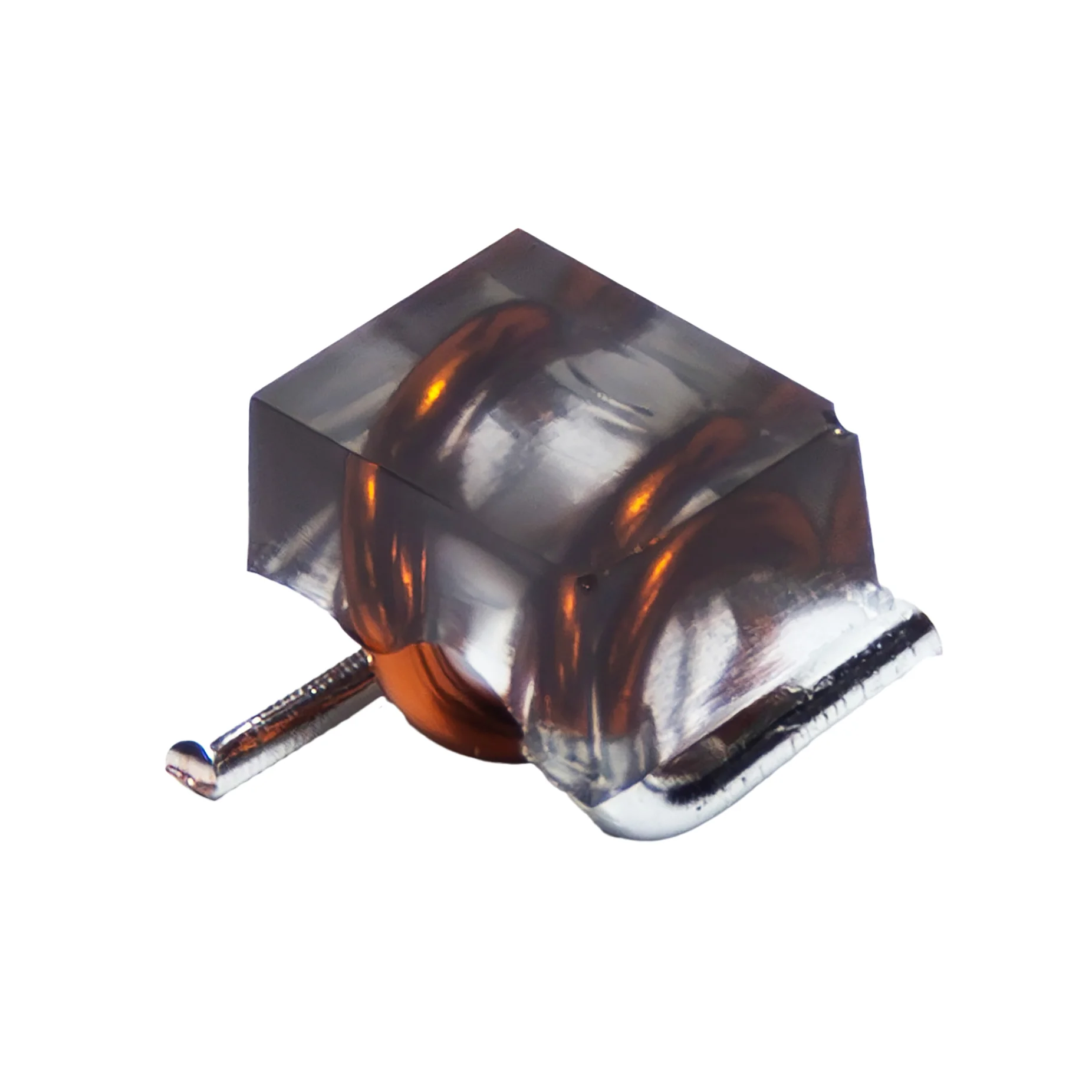

FIXED IND 2.5NH 4A 1.1 MOHM SMD
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for AC3630R-2N5J.
AC3630R-2N5J has an inductance value of 2.5 nH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
AC3630R-2N5J is rated for 4 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
AC3630R-2N5J lists a DC resistance of 1.1mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
AC3630R-2N5J uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from AC3630R-2N5J to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 2.5 nH |
| Tolerance | ±5% |
| Current Rating | 4 A |
| DC Resistance (DCR) | 1.1mOhm Max |
| Operating Temperature | -25°C ~ 125°C |
| Dimensions | 0.145" L x 0.120" W (3.68mm x 3.05mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 2.5NH 4A 1.1 MOHM SMD |
| Series | AC3630R |
| Product Status | Active |
| Type / Construction | Wirewound |
| Core Material | Air |
| Shielding | Unshielded |
| Q @ Frequency | 145 @ 150MHz |
| Self Resonant Frequency | 12.5GHz |
| Inductance Test Frequency | 150 MHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.125" (3.18mm) |
