Description

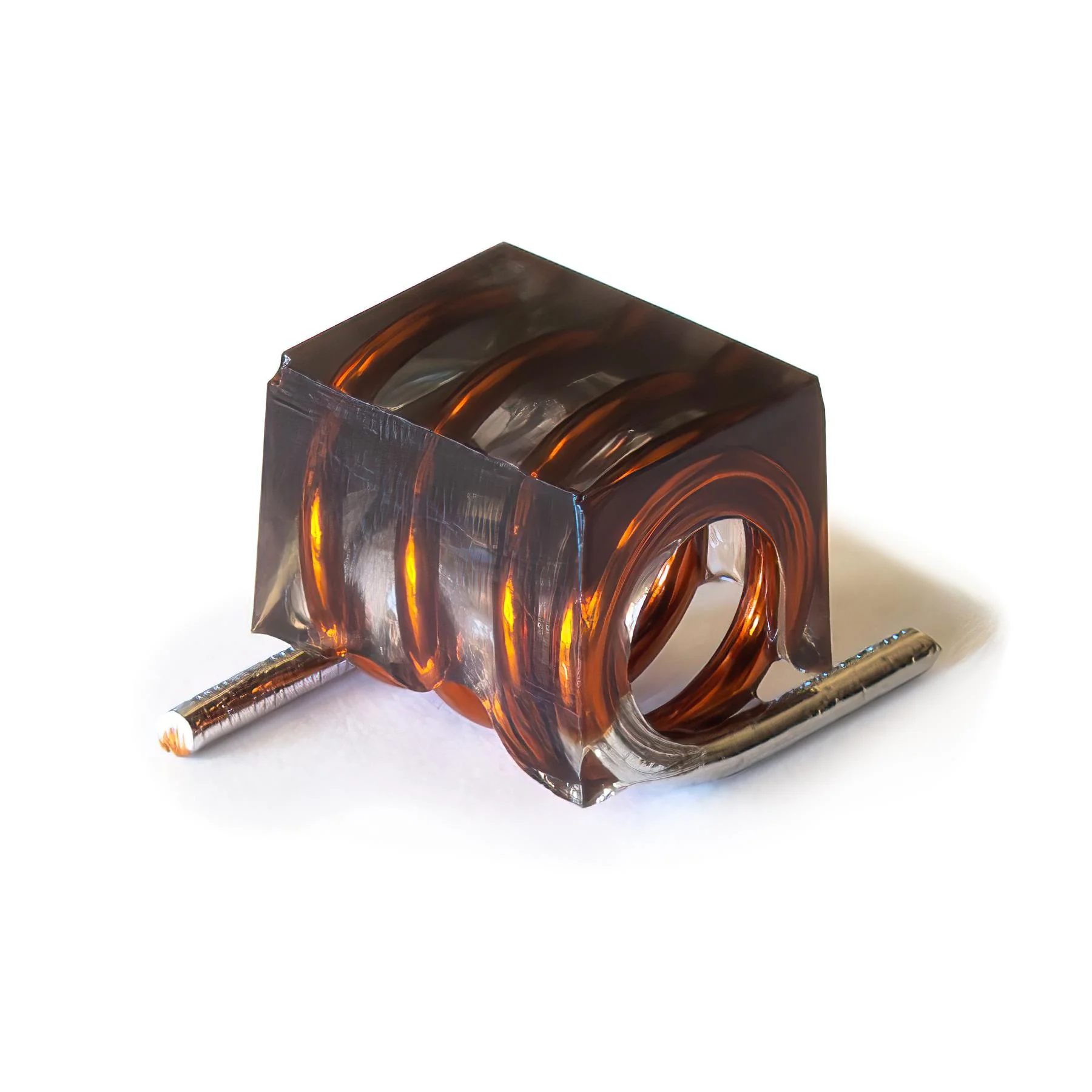

FIXED IND 33NH 3A 4.8 MOHM SMD
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for AC4842R-33NK.
AC4842R-33NK has an inductance value of 33 nH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
AC4842R-33NK is rated for 3 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
AC4842R-33NK lists a DC resistance of 4.8mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
AC4842R-33NK uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from AC4842R-33NK to manufacturer, series, and broader datasheet collections.
Alternative Solutions
Compare possible alternatives with similar specifications. Verify every electrical and mechanical requirement before use.
Product Attributes
| Inductance | 33 nH |
| Tolerance | ±10% |
| Current Rating | 3 A |
| DC Resistance (DCR) | 4.8mOhm Max |
| Operating Temperature | -25°C ~ 125°C |
| Dimensions | 0.190" L x 0.150" W (4.83mm x 3.81mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 33NH 3A 4.8 MOHM SMD |
| Series | AC4842R |
| Product Status | Active |
| Type / Construction | Wirewound |
| Core Material | Air |
| Shielding | Unshielded |
| Q @ Frequency | 100 @ 150MHz |
| Self Resonant Frequency | 2.5GHz |
| Inductance Test Frequency | 150 MHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.165" (4.20mm) |
