Description

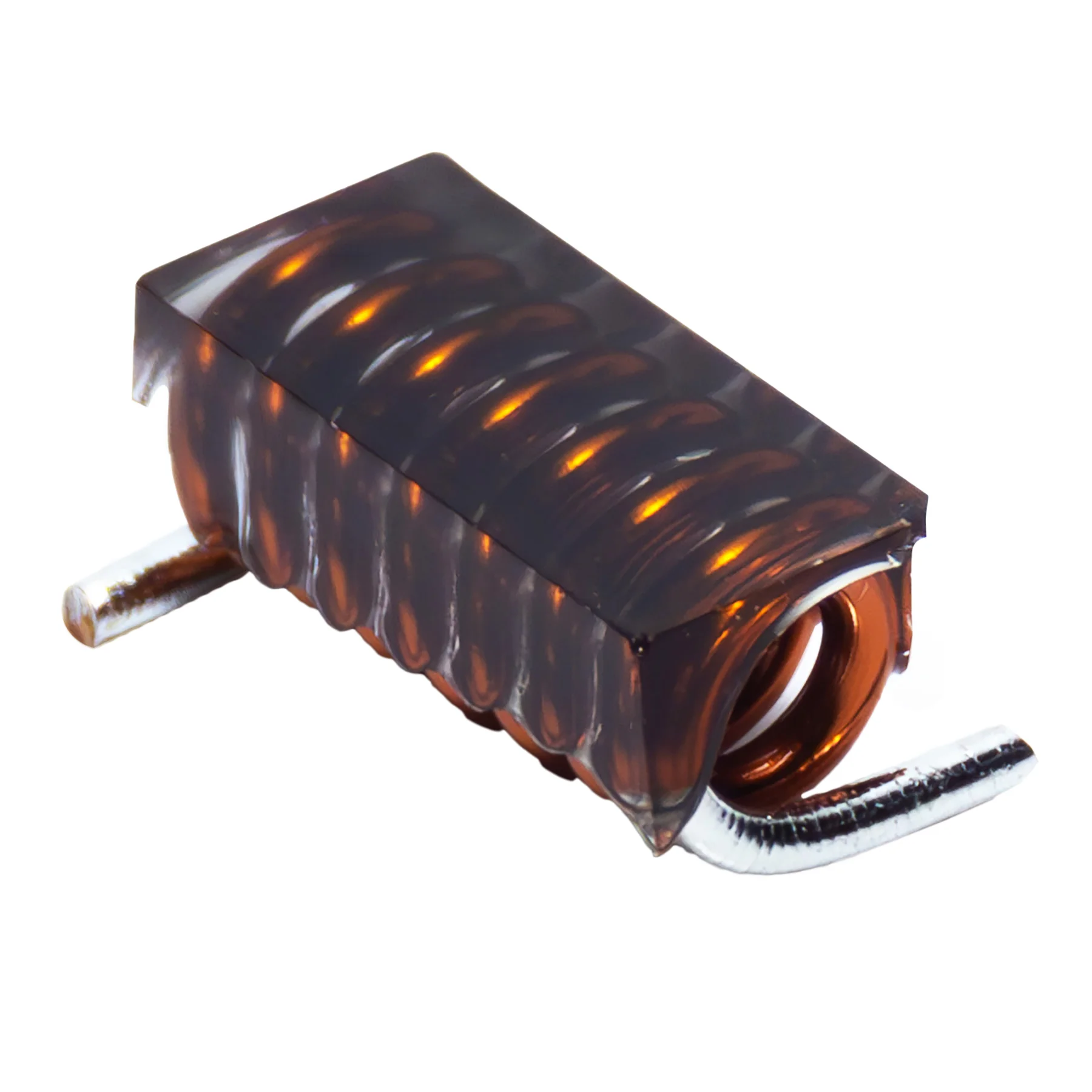

FIXED IND 28NH 4A 6 MOHM SMD
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for AC6830R-28NJ.
AC6830R-28NJ has an inductance value of 28 nH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
AC6830R-28NJ is rated for 4 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
AC6830R-28NJ lists a DC resistance of 6mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
AC6830R-28NJ uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from AC6830R-28NJ to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 28 nH |
| Tolerance | ±5% |
| Current Rating | 4 A |
| DC Resistance (DCR) | 6mOhm Max |
| Operating Temperature | -25°C ~ 125°C |
| Dimensions | 0.270" L x 0.120" W (6.86mm x 3.05mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 28NH 4A 6 MOHM SMD |
| Series | AC6830R |
| Product Status | Active |
| Type / Construction | Wirewound |
| Core Material | Air |
| Shielding | Unshielded |
| Q @ Frequency | 105 @ 150MHz |
| Self Resonant Frequency | 1.8GHz |
| Inductance Test Frequency | 150 MHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.125" (3.18mm) |
