Description

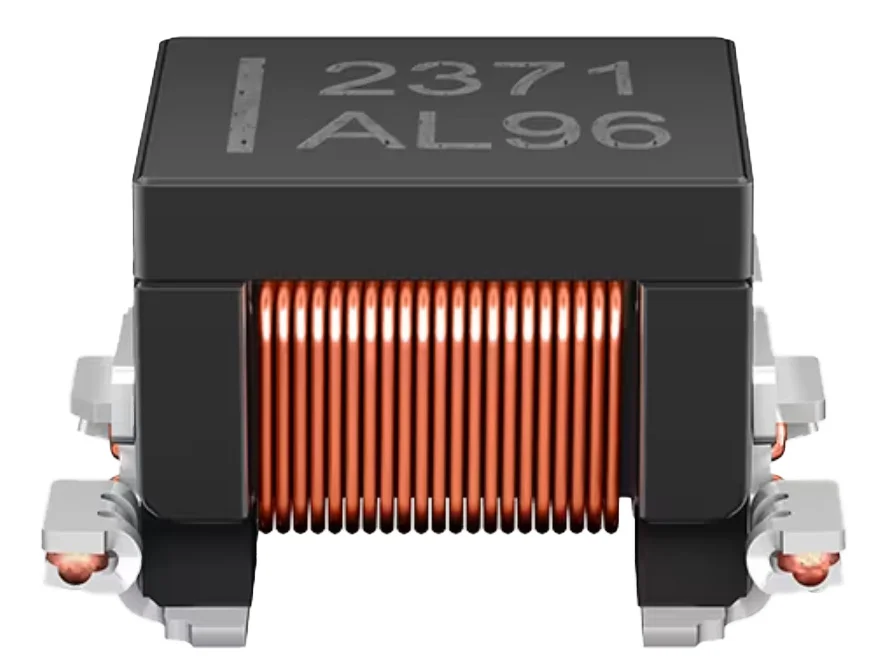

FIXED IND 15UH 700MA 630 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for ADL32VHC-150M.
ADL32VHC-150M has an inductance value of 15 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
ADL32VHC-150M is rated for 700 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
ADL32VHC-150M lists a DC resistance of 630mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
ADL32VHC-150M uses a package or case of Horizontal, 4 PC Pad. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from ADL32VHC-150M to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 15 µH |
| Tolerance | ±20% |
| Current Rating | 700 mA |
| DC Resistance (DCR) | 630mOhm Max |
| Saturation Current | 750mA |
| Operating Temperature | 150°C |
| Dimensions | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| Case / Size | Horizontal, 4 PC Pad |
| Package / Case | Horizontal, 4 PC Pad |
| Supplier | TDK |
| Description | FIXED IND 15UH 700MA 630 MOHM |
| Series | ADL32VHC |
| Product Status | Active |
| Type / Construction | Wirewound |
| Core Material | Ferrite |
| Shielding | Shielded |
| Self Resonant Frequency | 90MHz |
| Ratings | AEC-Q200 |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Surface Mount |
| Supplier Device Package | Horizontal, 4 PC Pad |
| Height - Seated (Max) | 0.098" (2.50mm) |
