Inductor Datasheets

Browse and download PDF datasheets for inductors from leading manufacturers.

Product Attributes

All Delevan (24873)Pulse Electronics (17770)Bourns Inc. (10998)Gowanda (8081)Taiyo Yuden (8063)TDK (7746)Abracon (6926)Coilcraft (5980)

TDK

15 µH• 700 mAHorizontal, 4 PC Pad

TDK

22 µH• 580 mAHorizontal, 4 PC Pad

TDK

10 µH• 1 AHorizontal, 4 PC Pad

Product	Inductance	Current	DCR	Size	Package	Actions
ADL32VHC-150M TDK	15 µH	700 mA	630mOhm Max	0.126" L x 0.098" W (3.20mm x 2.50mm)	Horizontal, 4 PC Pad	View PDF

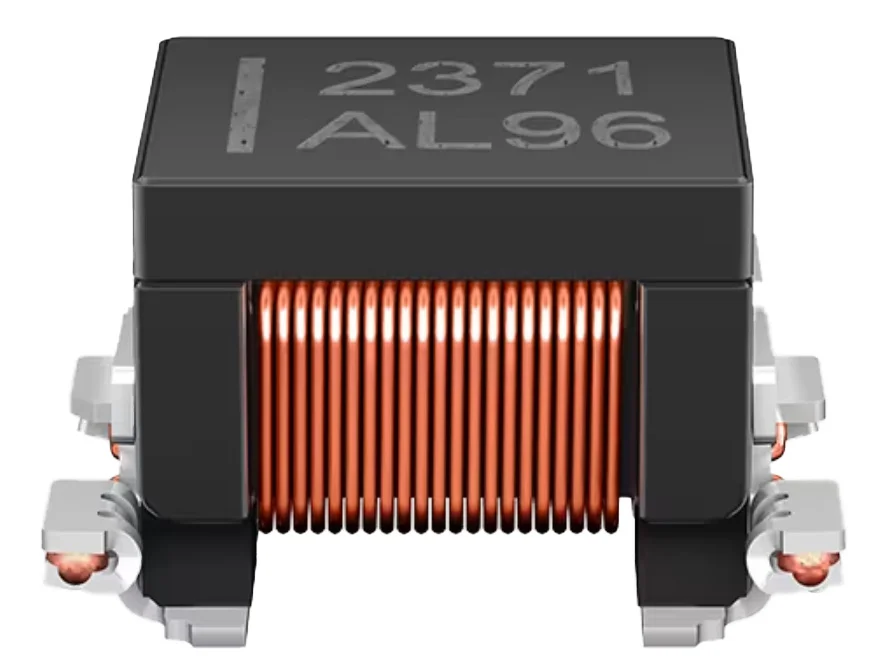

ADL32VHC-220M TDK	22 µH	580 mA	890mOhm Max	0.126" L x 0.098" W (3.20mm x 2.50mm)	Horizontal, 4 PC Pad	View PDF
ADL32VHC-100M TDK	10 µH	1 A	310mOhm Max	0.126" L x 0.098" W (3.20mm x 2.50mm)	Horizontal, 4 PC Pad	View PDF
