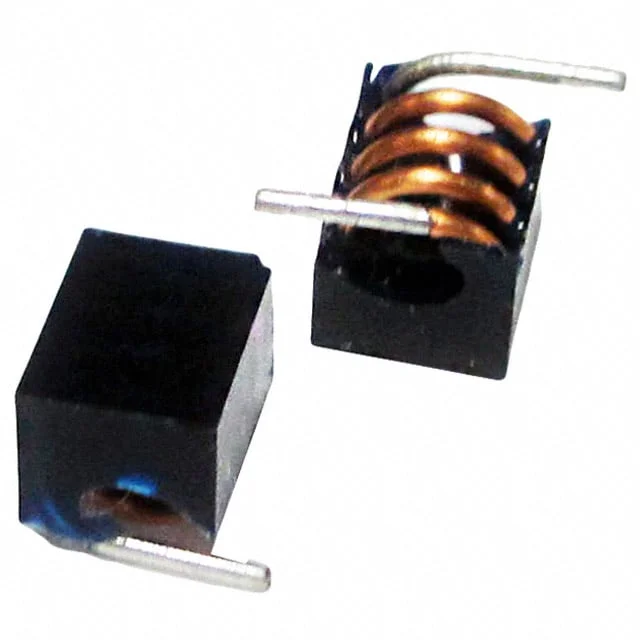

Description
FIXED IND 22NH 550MA 12.9 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for AIAC-0805C-22NK-T.
AIAC-0805C-22NK-T has an inductance value of 22 nH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
AIAC-0805C-22NK-T is rated for 550 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
AIAC-0805C-22NK-T lists a DC resistance of 12.9mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
AIAC-0805C-22NK-T uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from AIAC-0805C-22NK-T to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 22 nH |
| Tolerance | ±10% |
| Current Rating | 550 mA |
| DC Resistance (DCR) | 12.9mOhm Max |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.112" L x 0.071" W (2.85mm x 1.80mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Abracon |
| Description | FIXED IND 22NH 550MA 12.9 MOHM |
| Series | AIAC-0805C |
| Product Status | Obsolete |
| Type / Construction | Wirewound |
| Core Material | Air |
| Shielding | Unshielded |
| Q @ Frequency | 70 @ 300MHz |
| Self Resonant Frequency | 2.4GHz |
| Inductance Test Frequency | 300 MHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.083" (2.10mm) |
