Description

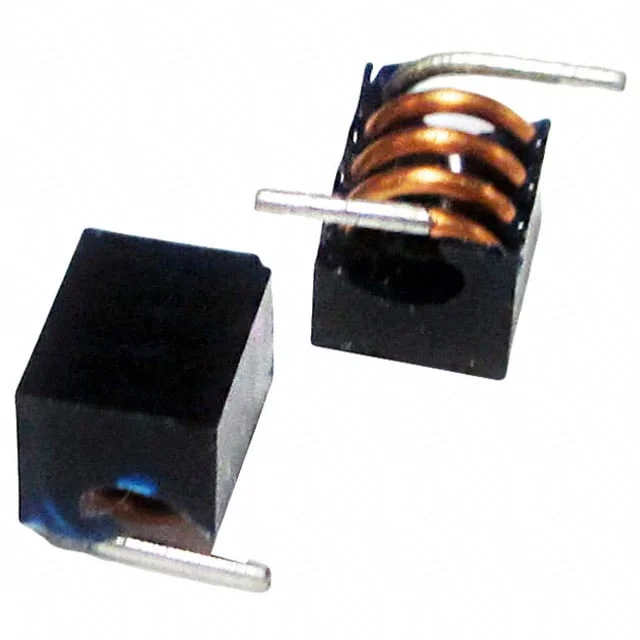

FIXED IND 33NH 500MA 18.7 MOHM
Specifications
Inductance
33 nH
Current Rating
500 mA
DC Resistance (DCR)
18.7mOhm Max
Dimensions
0.112" L x 0.071" W (2.85mm x 1.80mm)
Product Attributes
Manufacturer Verified
Last verified: 6/22/2026| Inductance | 33 nH |
| Tolerance | ±10% |
| Current Rating | 500 mA |
| DC Resistance (DCR) | 18.7mOhm Max |
| saturationCurrent | - |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.112" L x 0.071" W (2.85mm x 1.80mm) |
| Case / Size | Nonstandard |
| Supplier | Abracon |
| Description | FIXED IND 33NH 500MA 18.7 MOHM |
| Series | AIAC-0805C |
| productStatus | Obsolete |
| typeConstruction | Wirewound |
| coreMaterial | Air |
| shielding | Unshielded |
| qFactor | 70 @ 300MHz |
| selfResonantFreq | 1.6GHz |
| ratings | - |
| testFrequency | 300 MHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.083" (2.10mm) |
| features | https://www.digikey.com/en/products/detail/abracon-llc/AIAC-0805C-33NK-T/3737419 |
