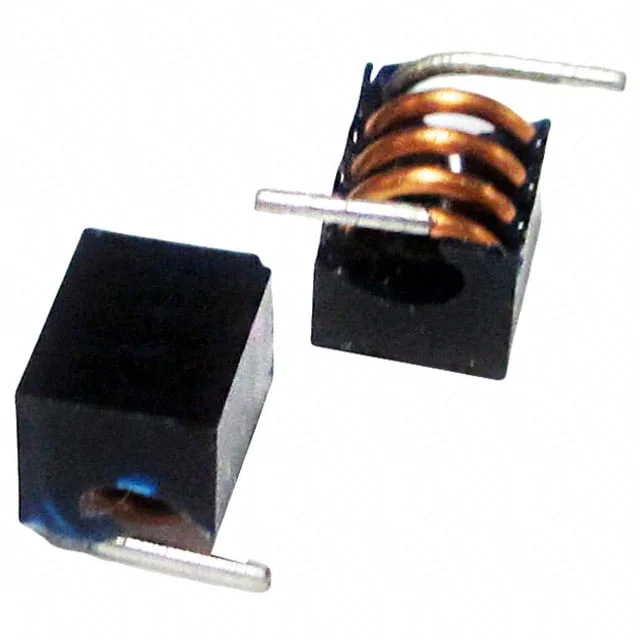

FIXED IND 27NH 600MA 13.9 MOHM
| Inductance | 27 nH |
| Tolerance | ±10% |
| Current Rating | 600 mA |
| DC Resistance (DCR) | 13.9mOhm Max |
| saturationCurrent | - |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.126" L x 0.075" W (3.20mm x 1.90mm) |
| Case / Size | Nonstandard |
| Supplier | Abracon |
| Description | FIXED IND 27NH 600MA 13.9 MOHM |
| Series | AIAC-1008C |
| productStatus | Obsolete |
| typeConstruction | Wirewound |
| coreMaterial | Air |
| shielding | Unshielded |
| qFactor | 70 @ 300MHz |
| selfResonantFreq | 1.6GHz |
| ratings | - |
| testFrequency | 300 MHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.087" (2.20mm) |
| features | - |
