Description

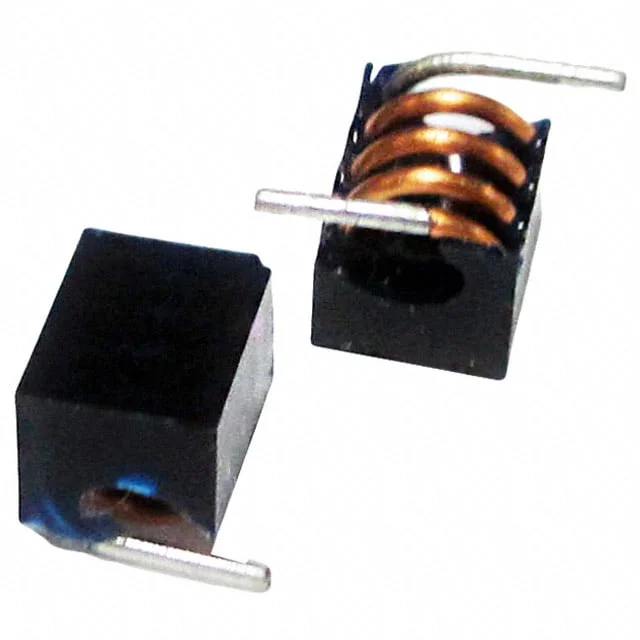

FIXED IND 33NH 500MA 19.5 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for AIAC-1008C-33NK-T.
AIAC-1008C-33NK-T has an inductance value of 33 nH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
AIAC-1008C-33NK-T is rated for 500 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
AIAC-1008C-33NK-T lists a DC resistance of 19.5mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
AIAC-1008C-33NK-T uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from AIAC-1008C-33NK-T to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 33 nH |
| Tolerance | ±10% |
| Current Rating | 500 mA |
| DC Resistance (DCR) | 19.5mOhm Max |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.126" L x 0.075" W (3.20mm x 1.90mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Abracon |
| Description | FIXED IND 33NH 500MA 19.5 MOHM |
| Series | AIAC-1008C |
| Product Status | Obsolete |
| Type / Construction | Wirewound |
| Core Material | Air |
| Shielding | Unshielded |
| Q @ Frequency | 70 @ 300MHz |
| Self Resonant Frequency | 1.6GHz |
| Inductance Test Frequency | 300 MHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.087" (2.20mm) |
