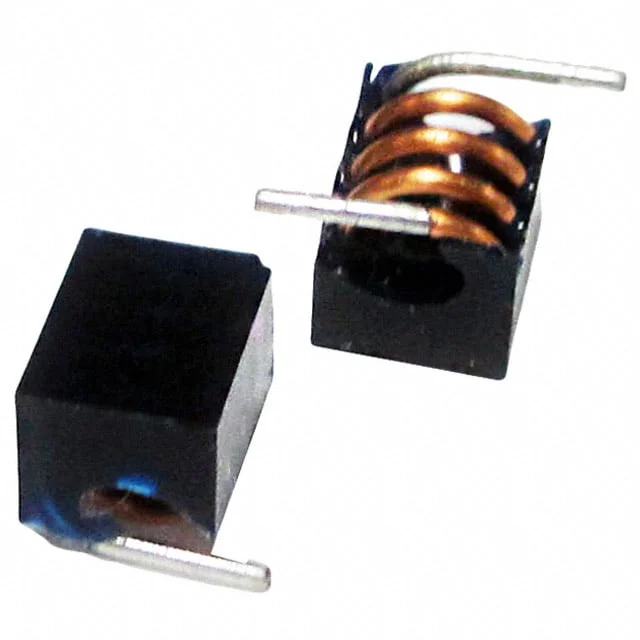

FIXED IND 35.5NH 2.7A 6.2 MOHM
| Inductance | 35.5 nH |
| Tolerance | ±5% |
| Current Rating | 2.7 A |
| DC Resistance (DCR) | 6.2mOhm Max |
| saturationCurrent | - |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.236" L x 0.098" W (6.00mm x 2.50mm) |
| Case / Size | Nonstandard |
| Supplier | Abracon |
| Description | FIXED IND 35.5NH 2.7A 6.2 MOHM |
| Series | AIAC-2712C |
| productStatus | Obsolete |
| typeConstruction | Wirewound |
| coreMaterial | Air |
| shielding | Unshielded |
| qFactor | 100 @ 150MHz |
| selfResonantFreq | 1.2GHz |
| ratings | - |
| testFrequency | 150 MHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.110" (2.80mm) |
| features | - |
