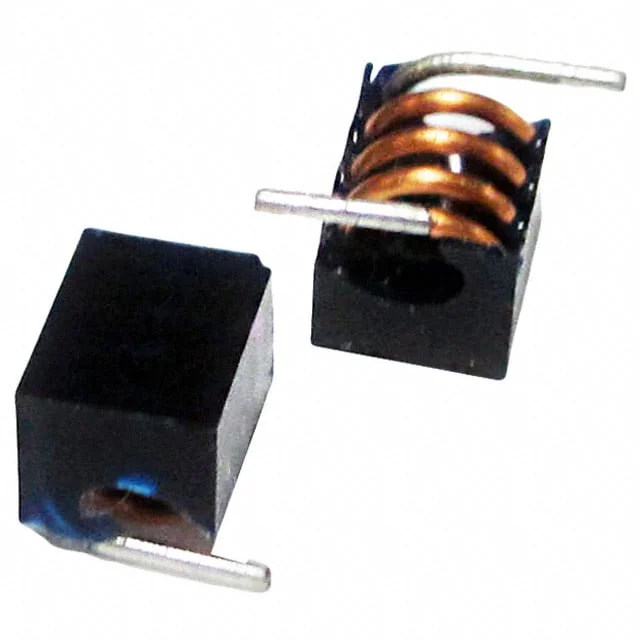

FIXED IND 111NH 3.5A 9.5 MOHM
| Inductance | 111 nH |
| Tolerance | ±5% |
| Current Rating | 3.5 A |
| DC Resistance (DCR) | 9.5mOhm Max |
| saturationCurrent | - |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | - |
| Case / Size | Surface Mount |
| Supplier | Abracon |
| Description | FIXED IND 111NH 3.5A 9.5 MOHM |
| Series | AIAC-4125C |
| productStatus | Active |
| typeConstruction | Wirewound |
| coreMaterial | Air |
| shielding | Unshielded |
| qFactor | 100 @ 50MHz |
| selfResonantFreq | 1GHz |
| ratings | - |
| testFrequency | 50 MHz |
| mountingType | - |
| supplierDevicePackage | Nonstandard |
| heightMax | 0.354" L x 0.173" W (9.00mm x 4.40mm) |
| features | 0.197" (5.00mm) |
