Description

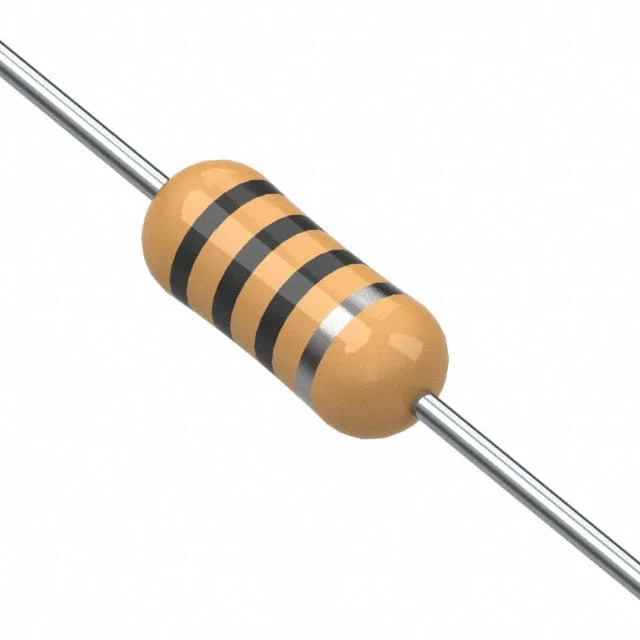

FIXED IND 33UH 255MA 1.7 OHM TH
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for AICC-02-330K-T.
AICC-02-330K-T has an inductance value of 33 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
AICC-02-330K-T is rated for 255 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
AICC-02-330K-T lists a DC resistance of 1.7Ohm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
AICC-02-330K-T uses a package or case of Through Hole. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from AICC-02-330K-T to manufacturer, series, and broader datasheet collections.
Alternative Solutions
Compare possible alternatives with similar specifications. Verify every electrical and mechanical requirement before use.
Product Attributes
| Inductance | 33 µH |
| Tolerance | ±10% |
| Current Rating | 255 mA |
| DC Resistance (DCR) | 1.7Ohm Max |
| Operating Temperature | -25°C ~ 105°C |
| Dimensions | Axial |
| Case / Size | Through Hole |
| Package / Case | Through Hole |
| Supplier | Abracon |
| Description | FIXED IND 33UH 255MA 1.7 OHM TH |
| Series | AICC-02 |
| Product Status | Obsolete |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Unshielded |
| Q @ Frequency | 50 @ 2.52MHz |
| Self Resonant Frequency | 10MHz |
| Inductance Test Frequency | 2.52 MHz |
| Supplier Device Package | Axial |
| Height - Seated (Max) | 0.110" Dia x 0.245" L (2.80mm x 6.22mm) |
