Description

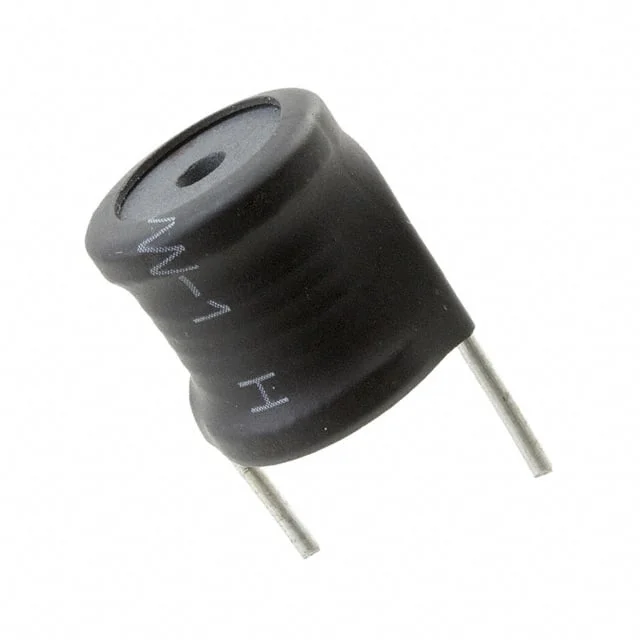

FIXED IND 33UH 5.5A 29 MOHM TH
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for AIRD-02-330K.
AIRD-02-330K has an inductance value of 33 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
AIRD-02-330K is rated for 5.5 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
AIRD-02-330K lists a DC resistance of 29mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
AIRD-02-330K uses a package or case of Through Hole. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from AIRD-02-330K to manufacturer, series, and broader datasheet collections.
Alternative Solutions
Compare possible alternatives with similar specifications. Verify every electrical and mechanical requirement before use.
Product Attributes
| Inductance | 33 µH |
| Tolerance | ±10% |
| Current Rating | 5.5 A |
| DC Resistance (DCR) | 29mOhm Max |
| Saturation Current | 18A |
| Operating Temperature | -25°C ~ 85°C |
| Case / Size | Through Hole |
| Package / Case | Through Hole |
| Supplier | Abracon |
| Description | FIXED IND 33UH 5.5A 29 MOHM TH |
| Series | AIRD-02 |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Unshielded |
| Inductance Test Frequency | 1 kHz |
| Supplier Device Package | Radial, Vertical Cylinder |
| Height - Seated (Max) | 0.827" Dia (21.00mm) |
| Features | 0.827" (21.00mm) |
