Description

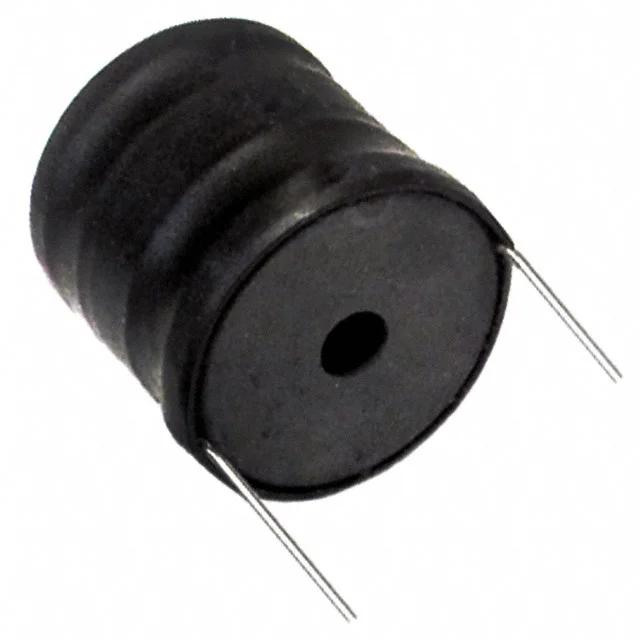

FIXED IND 1.2UH 11.4A 3 MOHM TH
Specifications
Inductance
1.2 µH
Current Rating
11.4 A
DC Resistance (DCR)
3mOhm Max
Dimensions
0.827" Dia (21.00mm)
Product Attributes
Manufacturer Verified
Last verified: 6/22/2026| Inductance | 1.2 µH |
| Tolerance | ±20% |
| Current Rating | 11.4 A |
| DC Resistance (DCR) | 3mOhm Max |
| saturationCurrent | 108A |
| Operating Temperature | -25°C ~ 85°C |
| Dimensions | 0.827" Dia (21.00mm) |
| Case / Size | Radial, Vertical Cylinder |
| Supplier | Abracon |
| Description | FIXED IND 1.2UH 11.4A 3 MOHM TH |
| Series | AIRD-06 |
| productStatus | Obsolete |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Unshielded |
| qFactor | 15 @ 50kHz |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 1 kHz |
| mountingType | Through Hole |
| supplierDevicePackage | - |
| heightMax | 0.827" (21.00mm) |
| features | - |
