Description

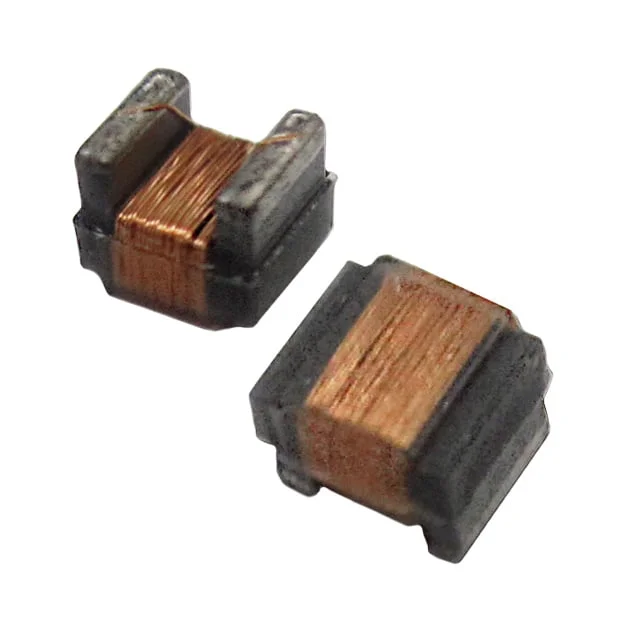

FIXED IND 20NH 1.4A 55 MOHM SMD
Specifications
Inductance
20 nH
Current Rating
1.4 A
DC Resistance (DCR)
55mOhm Max
Dimensions
0.090" L x 0.068" W (2.29mm x 1.73mm)
Product Attributes
Manufacturer Verified
Last verified: 6/22/2026| Inductance | 20 nH |
| Tolerance | ±5% |
| Current Rating | 1.4 A |
| DC Resistance (DCR) | 55mOhm Max |
| saturationCurrent | - |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.090" L x 0.068" W (2.29mm x 1.73mm) |
| Case / Size | Nonstandard |
| Supplier | Abracon |
| Description | FIXED IND 20NH 1.4A 55 MOHM SMD |
| Series | AISC-0805HQ |
| productStatus | Obsolete |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ceramic |
| shielding | Unshielded |
| qFactor | 70 @ 500MHz |
| selfResonantFreq | 2.05GHz |
| ratings | - |
| testFrequency | 250 MHz |
| mountingType | Surface Mount |
| supplierDevicePackage | 0805 |
| heightMax | 0.060" (1.52mm) |
