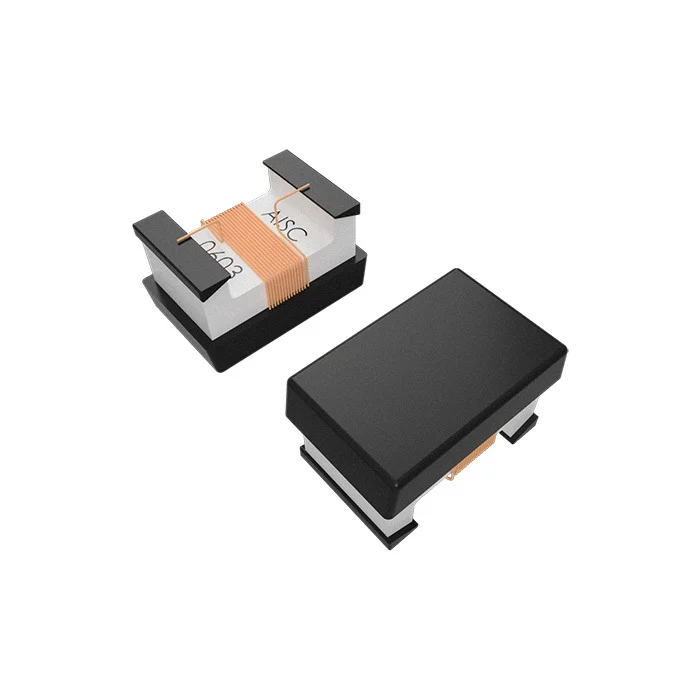

FIXED IND 22NH 700MA 190 MOHM
| Inductance | 22 nH |
| Tolerance | ±2% |
| Current Rating | 700 mA |
| DC Resistance (DCR) | 190mOhm Max |
| saturationCurrent | - |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0603 |
| Case / Size | Surface Mount |
| Supplier | Abracon |
| Description | FIXED IND 22NH 700MA 190 MOHM |
| Series | AISC-Q0603 |
| productStatus | Active |
| typeConstruction | Wirewound |
| coreMaterial | Ceramic |
| shielding | Unshielded |
| qFactor | 38 @ 250MHz |
| selfResonantFreq | 3GHz |
| ratings | AEC-Q200 |
| testFrequency | 250 MHz |
| mountingType | - |
| supplierDevicePackage | 1008 (2520 Metric) |
| heightMax | 0.071" L x 0.044" W (1.80mm x 1.12mm) |
| features | 0.040" (1.02mm) |
